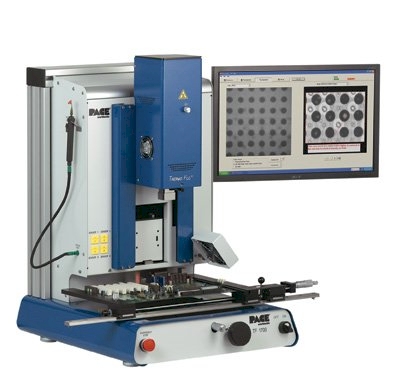

PACEWORLDWIDE TF 1700 Area Array (BGA) Rework
ManufacturerPACEWORLDWIDE(View more products from this manufacturer)
ModelTF 1700
P/N8007-0466
OriginUSA
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Requirements: 230 VAC, 50 Hz (2000 watts maximum)
Heater (top side): Convective (air or N2), 1200 Watts
Bottom Heater w/ adjustable height IR: 400 Watts x 1 220mm (8.6") x 155mm (6.1")
Temperature setting rangeTop Heater: 100˚ to 400˚ C (212˚ - 750˚ F)
Bottom Heater: 100˚ to 221˚ C (212˚ - 430˚ F)
Max Component size: 65mm (2.5") x 65mm (2.5")
Max PCB size: 305mm x 305mm (12" x 12")
Airflow maximum: Self contained,PC controlled, 20 SLPM
N2 Option: Standard
Positioning Accuracy: (Z axis)± 25 µmeters (0.001")
Vacuum: 450 mm Hg
Optics: High resolution, Vision Overlay System
Video Inputs: 2 Composite Video, 1 “S” Video (for alignment optics)
Dimensions: 737mm (29") H x 686mm (27") W x 737mm (29") D
Weight: (Without Computer)45kg (100lbs)
Video Monitor Viewable Area: 482mm (19") Wide Screen LCD
Board Supports: Included
Optical Alignment Kit: Included
