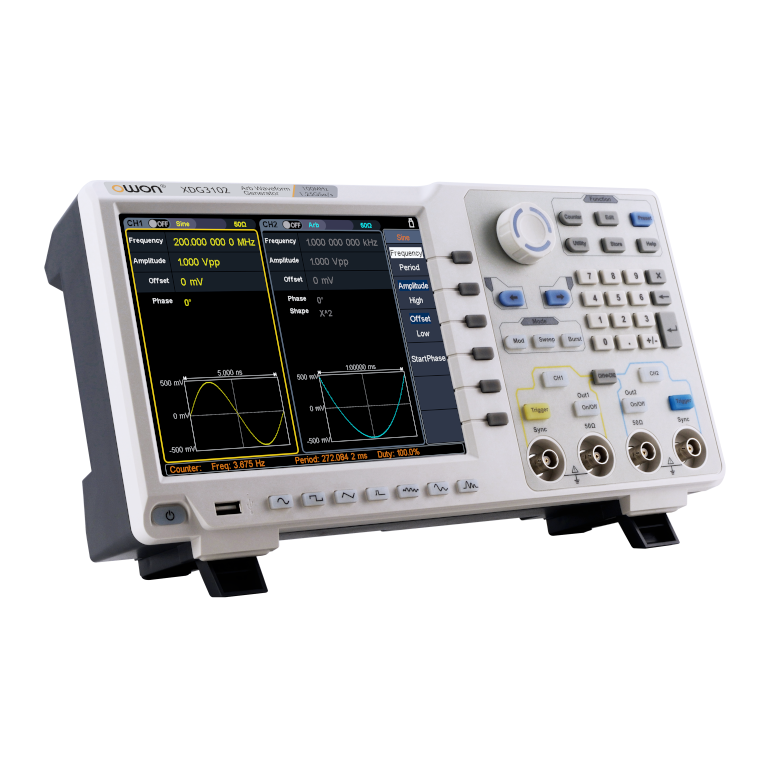

Owon XDG3102 Waveform Generator(100Mhz, 2 channel, 1.25GSa/s)

Channel2

Frequency Output 100MHz

Sample Rate1.25GSa/s

Vertical Resolution14 bits

Standard Waveformsine, square, pulse, ramp, noise, and harmonic

Arbitrary Waveformexponential rise, exponential fall, sin(x)/x, step wave, and others,

total 150 built-in waveforms, and user-defined arbitrary waveform

Sine1μHz - 100MHz

Square1μHz - 40MHz

Pulse1μHz - 25MHz

Ramp1μHz - 5MHz

Harmonic 1μHz - 50MHz

Noise120MHz (-3dB, typical)

Arbitrary Waveform built-in waveform: 1uHz - 15MHz

user-defined waveform: 1uHz - 50MHz

Accuracy ±1ppm, 0°C - 40°C

Amplitude

into 50Ω load1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz)

1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz)

into open circuit or high-Z2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz);

2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz)

Frequency Counter

Functionfrequency period, +width, -width, +duty, and -duty

Frequency Range100mHz - 200MHz

Frequency Resolution7 digits

Input / Output

Display8”800 x 600 pixels touch screen LCD

Typefrequency counter, external modulation input,

external trigger input,

external reference clock input / output

Communication InterfaceUSB Host, USB Device, and LAN

Dimension (W×H×D)340 x 177 x 90 (mm)

Weight (without package)2.50kg
