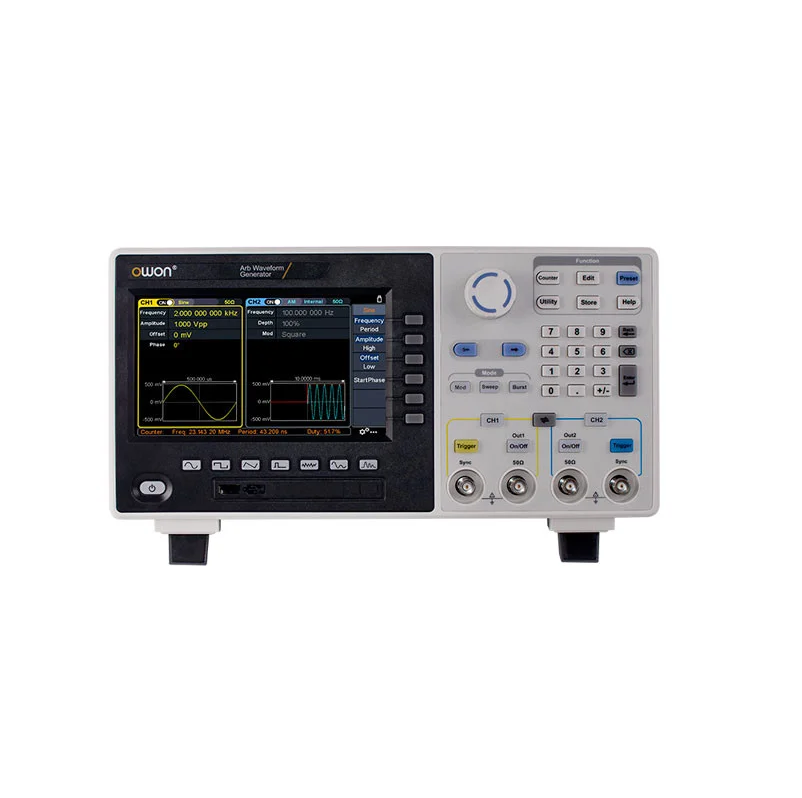

OWON XDG2060 Arbitrary Waveform Generator (60MHz; 2-CH)

Max 60MHz frequency output

Arbitrary Waveform: 1μHz ~15MHz

Harmonic: 1μHz ~30MHz

Accuracy: ±2ppm, 25°C±5°C

Waveform Length: 2 points - 10M points

Amplitude into 50Ω load: 1mVpp ~ 10Vpp (≤ 25MHz); 1mVpp ~ 5Vpp (≤60MHz); 1mVpp ~ 2.5Vpp (≤100MHz);

Modulation Type: AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM

Frequency Counter:

- Function: Frequency, period, +width, -width, +duty, and -duty

- Frequency Range: 100mHz ~ 200MHz

- Frequency Resolution: 7 digits

Input / Output:

- Input mode: frequency counter, external modulation input, external trigger input, Internal clock output, external reference clock input / output

- Communication Interface: USB Host, USB Device, LAN, RS232(optional)

Mechanical specifications:

- Size: 340mm x 177mm x 90mm

- Weight: 2.3kg

Accessories Included:

1 x XDG2100

1 x Power Cord

1 x CD Rom

1 x Quick start guide

1 x USB Cable

1 x BNC -BNC Cable

Manual
