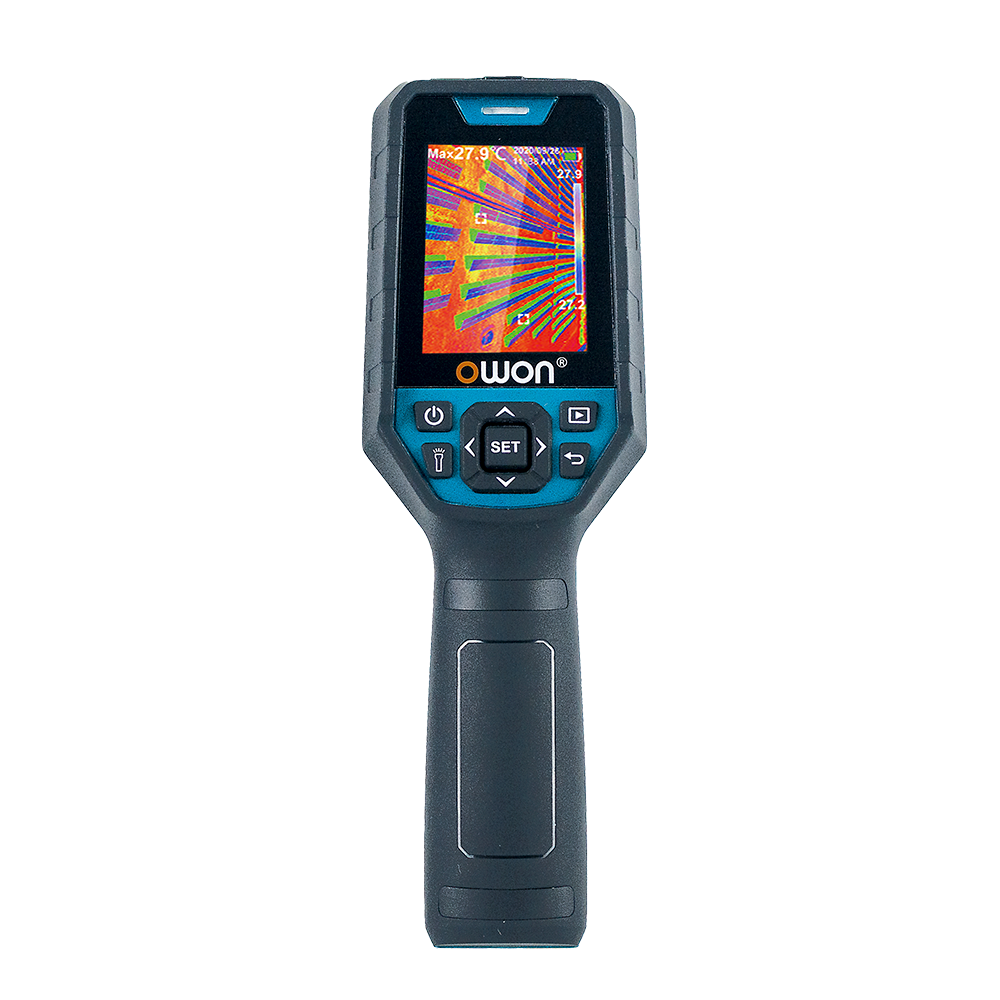

OWON TI219 Handheld Thermal Imaging Camera (-20°C ~400°C; 640*480; 7.3mrad)

Sensor: 120´90

Temperature range: -20°C ~400°C

Accuracy: -10℃~400℃，the accuracy is ±2C or 2%; take the maximum value (normal temperature 25℃ )

Resolution ratio: 0.1℃

Mode: Automatic gain

The best measurement distance: 50cm

Temperature measurement response time: ≤500ms

Emissivity: 0.95 (default)(adjustable from 0.1 to 0.99)

Pixel size: 17μm

Palette: Iron red, rainbow, white heat, black heat, red heat

Infrared spectral bandwidth: 8~14μm

Field of View Angle（FOV): 50°（H)*38°（V)

Instant Field of View Angle（FOV): 7.3mrad

Thermal imaging sensitivity: ≤60mK

Frame rate: ≤25Hz

Temperature measurement display: Main area temperature measurement (ROI), central point temperature measurement, high and low temperature tracking

Image format: BMP

Visible light resolution: 640*480

Field of View Angle（FOV): 81 degree

Image mode: Thermal imaging,digital camera(visible band temperature display), integration

Thermostat alarm: Image alarm, LED alarm and buzzer alarm

Auto shut off: Optional (5min 10min 30min off) The default is 30min

Data communication: Type-C USB

Battery: Li-ion 3.7V/5000mAh

Display: 2.8”TFT LCD（320*240）
