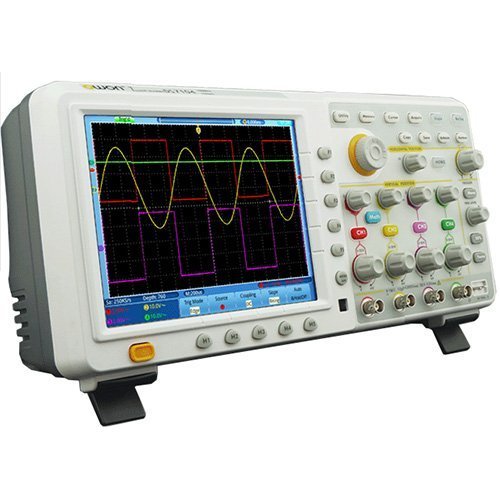

OWON TDS8104 Touch Screen Digital Oscilloscope (100Mhz, 4 Ch, 2Gsa/s)
ManufacturerOWON(View more products from this manufacturer)
ModelTDS8104
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Specifications | ||
| Bandwidth | 100MHz | |
| Channel | 4 | |
| Sample Rate | 2GS/s | |
| Waveform Capture Rate | 50,000 wfms/s | |
| Display | 8" touch screen color LCD | |
| Input Coupling | DC, AC, and GND | |
| Input Impedance | 1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% | |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |
| Max Input Voltage | 1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) 50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK) | |
| Channel Isolation | 50Hz：100：1 10MHz：40：1 | |
| Interpolation | sin(x)/x | |
| Record Length | 7.6M | |
| Horizontal Scale (s/div) | 2ns/div - 100s/div, step by 1 - 2 - 5 | |
| Interval (ΔT) Accuracy (full bandwidth) | Single : ±(1 interval time + 100ppm x reading + 0.6ns) Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns) | |
| Vertical Resolution (A/D) | 8 bits resolution (4 channels simultaneously) | |
| Vertical Sensitivity | 2mV/div - 10V/div (at input) | |
| Analog Bandwidth | 100 MHz | |
| LF Respond (AC, -3dB) | ≥5Hz (at input, AC coupling, -3dB) | |
| Rise Time | ≤3.5ns | |
| DC Accuracy | ±3% | |
| Trigger Type | Edge, Pulse, Video, Slope | |
| Trigger Mode | Auto, Normal, Single | |
| Trigger Level Range | ±6 div from the screen center | |
| Trigger level Accuracy (typical) | ±0.3 div | |
| Line / Field Frequency (video) | NTSC, PAL, and SECAM standard | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty | |
| Waveform Math | ＋, －, ×, ÷, invert, FFT | |
| Waveform Storage | 4 reference waveforms | |
| Lissajous Figure | Bandwidth | full Bandwidth |
| Phase Difference | ±3 degrees | |
| Cursor Measurement | ΔV, and Δ T between cursors | |
| Communication Port | USB host, USB device, VGA, LAN | |
| Power Supply | 100 - 240 V AC, 50/60Hz, CAT II | |
| Dimension (WxHxD) | 14.9 x 7.08 x 4.5 Inches (380 x 180 x 115 mm) | |
| Weight | 3.3 lbs (1.5 kg) | |
| Specifications | ||
| Bandwidth | 100MHz | |
| Channel | 4 | |
| Sample Rate | 2GS/s | |
| Waveform Capture Rate | 50,000 wfms/s | |
| Display | 8" touch screen color LCD | |
| Input Coupling | DC, AC, and GND | |
| Input Impedance | 1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% | |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |
| Max Input Voltage | 1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) 50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK) |
|
| Channel Isolation | 50Hz：100：1 10MHz：40：1 |
|
| Interpolation | sin(x)/x | |
| Record Length | 7.6M | |
| Horizontal Scale (s/div) | 2ns/div - 100s/div, step by 1 - 2 - 5 | |
| Interval (ΔT) Accuracy (full bandwidth) | Single : ±(1 interval time + 100ppm x reading + 0.6ns) Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns) |
|
| Vertical Resolution (A/D) | 8 bits resolution (4 channels simultaneously) | |
| Vertical Sensitivity | 2mV/div - 10V/div (at input) | |
| Analog Bandwidth | 100 MHz | |
| LF Respond (AC, -3dB) | ≥5Hz (at input, AC coupling, -3dB) | |
| Rise Time | ≤3.5ns | |
| DC Accuracy | ±3% | |
| Trigger Type | Edge, Pulse, Video, Slope | |
| Trigger Mode | Auto, Normal, Single | |
| Trigger Level Range | ±6 div from the screen center | |
| Trigger level Accuracy (typical) | ±0.3 div | |
| Line / Field Frequency (video) | NTSC, PAL, and SECAM standard | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty | |
| Waveform Math | ＋, －, ×, ÷, invert, FFT | |
| Waveform Storage | 4 reference waveforms | |
| Lissajous Figure | Bandwidth | full Bandwidth |
| Phase Difference | ±3 degrees | |
| Cursor Measurement | ΔV, and Δ T between cursors | |
| Communication Port | USB host, USB device, VGA, LAN | |
| Power Supply | 100 - 240 V AC, 50/60Hz, CAT II | |
| Dimension (WxHxD) | 14.9 x 7.08 x 4.5 Inches (380 x 180 x 115 mm) | |
| Weight | 3.3 lbs (1.5 kg) | |
