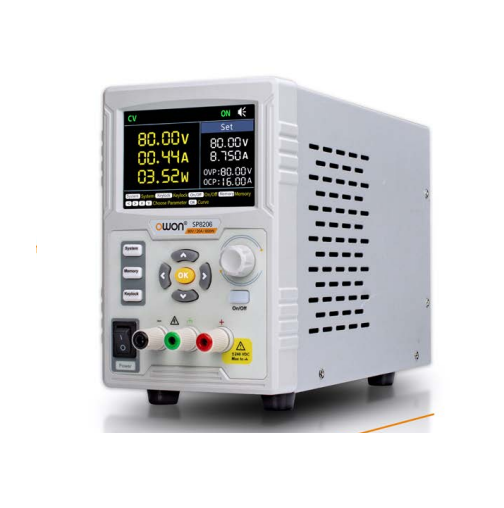

OWON SP8206 High-Voltage High-Current Single-Output Supply (80V; 20A; 600W)

Rated Output (0°C-40°C):

Voltage: 0-80V

Current: 0-20A

Power: 600W

Input Characteristics:

Supply Voltage: 100-240Vac

Input Frequency: 50 - 60Hz

Full-Load Input Current: ≤6.6A (110Vac); ≤3.2A (220Vac)

No-Load Input Current: ≤200mA (110Vac); ≤100mA (220Vac)

Load Regulation:

Voltage : ≤30mV

Current : ≤30mA

Line Regulation:

Voltage : ≤20mV

Current : ≤20mA

Setting Resolution:

Voltage : 10mV

Current: 1mA

Readback Resolution:

Voltage : 10mV

Current: 1mA

Setting Accuracy (25°C±5°C):

Voltage : ≤0.1% ± 20mV

Current : ≤0.1% ± 20mA

Readback Accuracy (25°C±5°C):

Voltage : ≤0.1% ± 20mV

Current : ≤0.1% ± 20mA

Ripple & Noise (20Hz-20MHz) :

Voltage (Vp-p) : ≤50mVp-р

Voltage (rms) : ≤20mVrms

Current (Ap-p) : ≤20mA

Temperature coefficient of output:

Voltage : 100ppm/°C

Current : 200ppm/°С

Temperature coefficient of readback value:

Voltage : 100ppm/°C

Current : 200ppm/°С

Transient recovery time (10%-100% rated load) : ≤5.0ms

Storage Temperature: -20°C - 60°C

Working Temperature: 0°C- 40°C

Fuse: 250 V, F10A

Display: 3.7-inch Color LCD Display

Dimension (W/ H/D): 117 x 194 x 290 mm

Weight: Approx. 2.0kg
