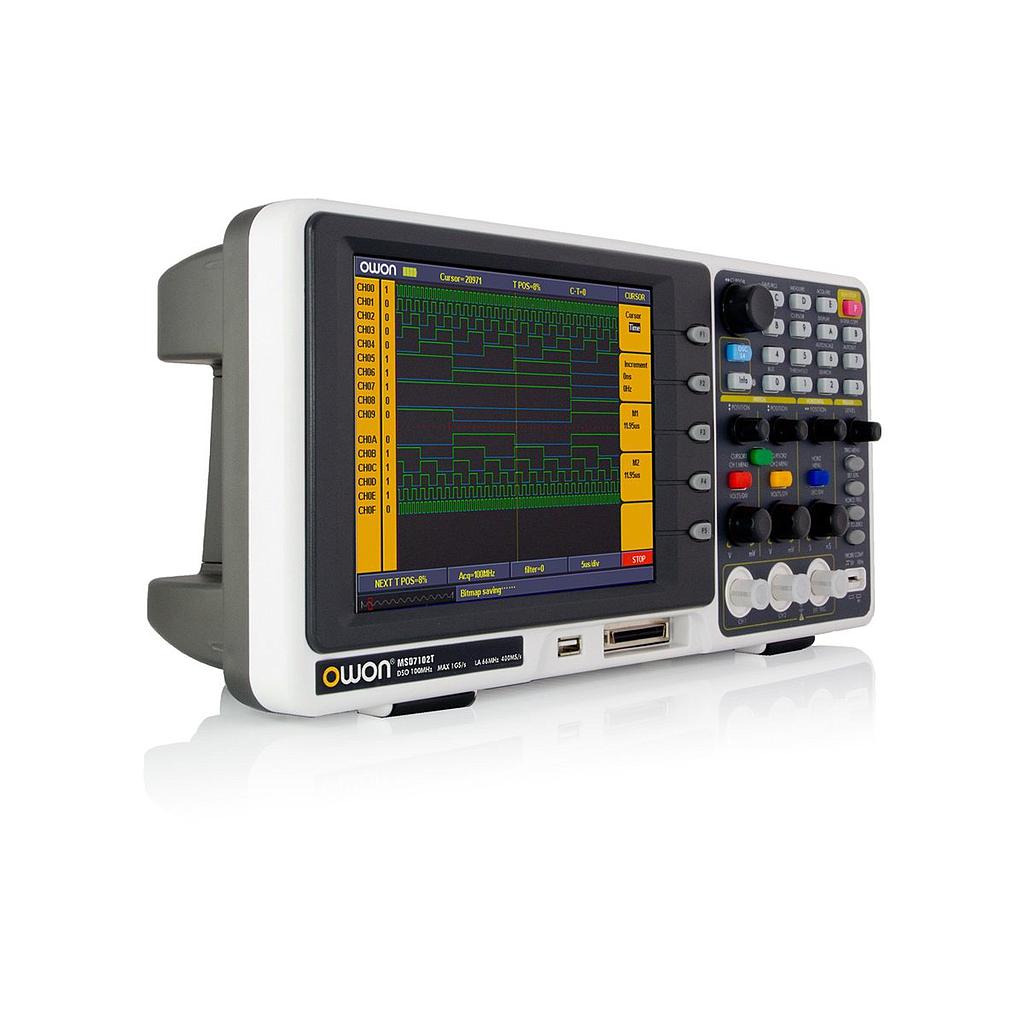

OWON MSO Series LA + digital oscilloscope MSO5022S (25MHz, 2Channel)
Specifications
Bandwidth 25MHz
Sample Rate (real time) 100MS/s
Display 7.8 inch color LCD
Channel dual + external trigger
DC Accuracy (average) average>16 : ±(3% reading + 0.05div) for △V
Vertical Sensitivity 5mV/div - 5V/div
DC Gain Accuracy ±3%
Vertical Resolution (A/D) 8 bits (2 channels simultaneously) Interpolation sin (x) / x
Max Input Voltage 300V (DC + AC, PK - PK)
Probe Attenuation Factor 1X,10X,100X,1000X
Trigger Mode Edge, Video, Alternate, Pulse, Slope
Acquisition Mode Normal, Peak Detect, and Average
Record Length max 6K points max 2M points
Waveform Storage 4 waveforms
Automatic Measurement Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Logic Analyzer Performance Specifications
Sample Rate (real time) 20S/s - 200MS/s
Bandwidth 40MHz
Channel 16 Record
Length Max 4M each channel
Input Impedance 660KΩ ± 5%, in parallel with 15 ± 5pF
Trigger Mode Edge, Bus, State, Data Alignment, Data Width, Distributed Queue
Trigger Position Setting Pre-trigger, Mid-trigger, and Re-trigger
Threshold Voltage ±6V (4 settings)
Input Signal Range ±30V
Data Search available
Data System binary, decimal, hex
Digital Filter 0, 1, 2 optional
Setting Storage 10 settings
USB Flash Disk Storage available
