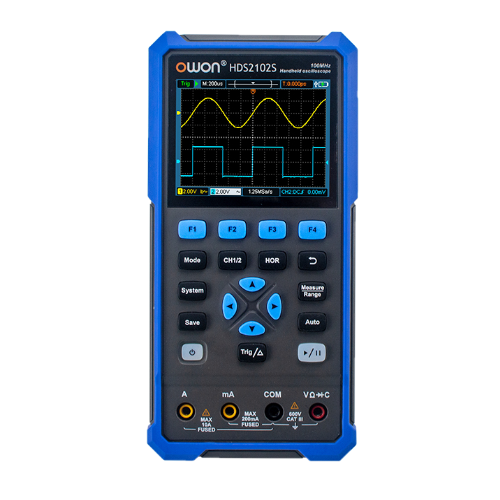

Oscilloscope
Bandwidth: 100MHz
Channels: 2-CH Oscilloscope + 1-CH Generator
Sample Rate: 250 MSa/s (Dual channel); 500MSa/s (Single channel)
Acquisition Model: Normal, Peak detect
Record Length: 8K
Display: 3.5-inch LCD
Waveform Refresh Rate: 10,000 wfrms/s
Multimeter
Testing Mode: Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance: 10MΩ
Max Input Voltage: AC 750V, DC 1000V
Max Input Current: DC: 10A, AC: 10A
Waveform Generator
Frequency Output: Sine: 0.1Hz - 25MHz
Square: 0.1Hz - 5MHz
Ramp: 0.1Hz - 1MHz
Pulse: 0.1Hz - 5MHz
Arbitrary: 0.1Hz - 5MHz
Sampling Rate: 125MSa/s
Channel: 1-CH
Amplitude Range (high impedance): 20 mVpp - 5 Vpp
Waveform Length: 8K
Vertical Resolution: 14bits
Output Impedance: 50Ω
