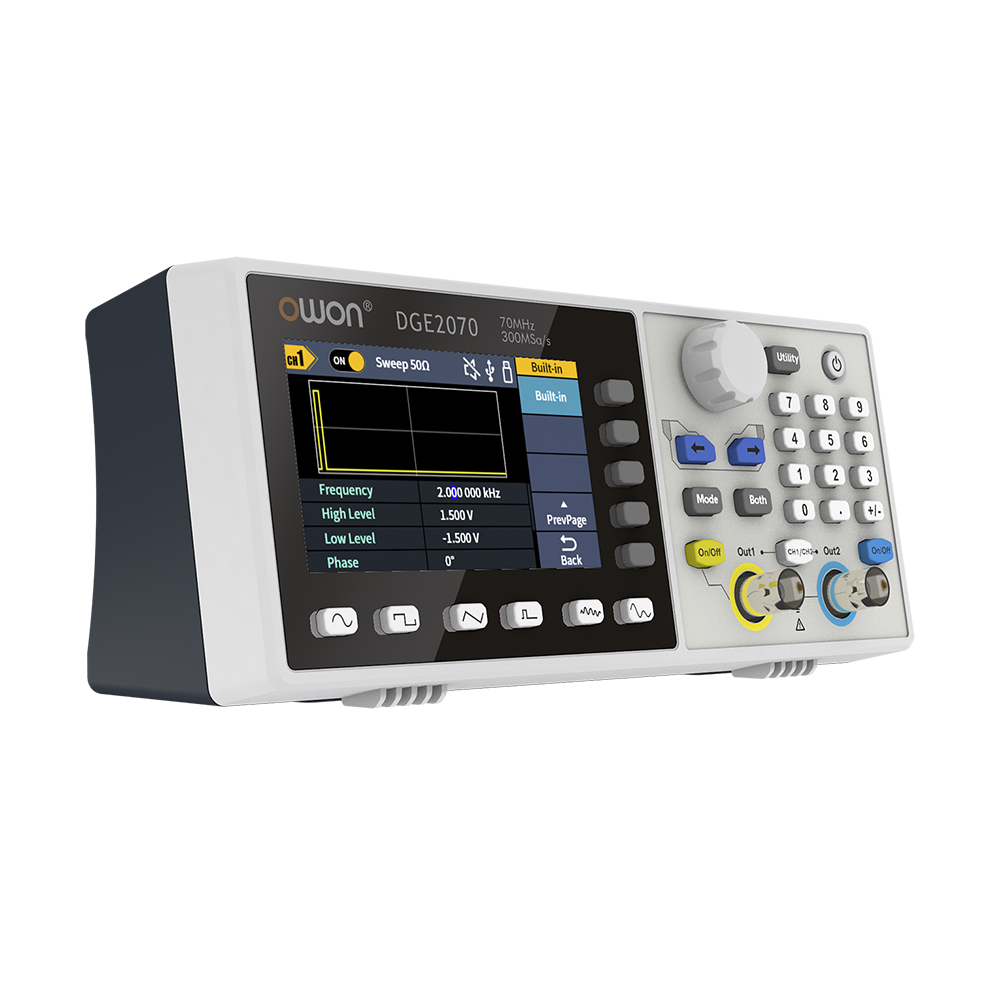

OWON DGE2070 Arbitrary Waveform Generator (2 chanels, 70 MHz)

Channel: 2

Frequency Output: 70MHz

Sample Rate: 300MSa/s

Vertical Resolution: 14 bits

Waveform

Standard Waveform: sine, square, pulse, ramp, and noise

Arbitrary Waveform: exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform

Frequency

Sine: 1μHz - 70MHz

Square: 1μHz - 20MHz

Pulse: 1μHz - 20MHz

Ramp: 1μHz - 2MHz

Noise: 20MHz (-3dB，typical)

Arbitrary Waveform:1μHz -10MHz

Frequency Resolution: 1 μHz or 7 significant figures

Frequency Stability: ±30 ppm at 0±40℃

Frequency Aging Rate: ±30 ppm per year

Arbitrary

Waveform Length: 2 - 8K points

Sample Rate: 300Ma/s

Amplitude

into 50Ω Load: 1mVpp - 10Vpp（≤10MHz）; 1mVpp - 5Vpp （≤70MHz）

DC Offset Range (AD+DC): ±(10 Vpk – Amplitude Vpp/2) high resistance; ±(5 Vpk – Amplitude Vpp/2) 50 Ω

DC offset Resolution: 1mV or 4digits

Load Impedance: 50Ω (typical)

DC offset Accuracy: ±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%)

Modulation

Type: AM, FM, PM, FSK, sweep, Burst

Internal Modulation Frequency: 2 mHz to 100 kHz

Sweep

Carrier: Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)

Minimum/Maximum Starting Frequency: 2mHz（minimum）/ maximum frequency of corresponding carrier

Minimum/Maximum Termination Frequency: 2mHz（minimum）/ maximum frequency of corresponding carrier

Trigger Source: internal, manual

Burst

Waveform: Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC)

Types: N-Cycle

Trigger source: Internal, manual

Carrier frequency: 1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2

Input / Output

Display: 3.6-inch TFT LCD with resolution 480 x 272

Communication Interface: USB Device

Mechanical specifications

Dimension (W×H×D): 200mm x 68.5mm x 74.5mm

Weight (without package): 0.5kg
