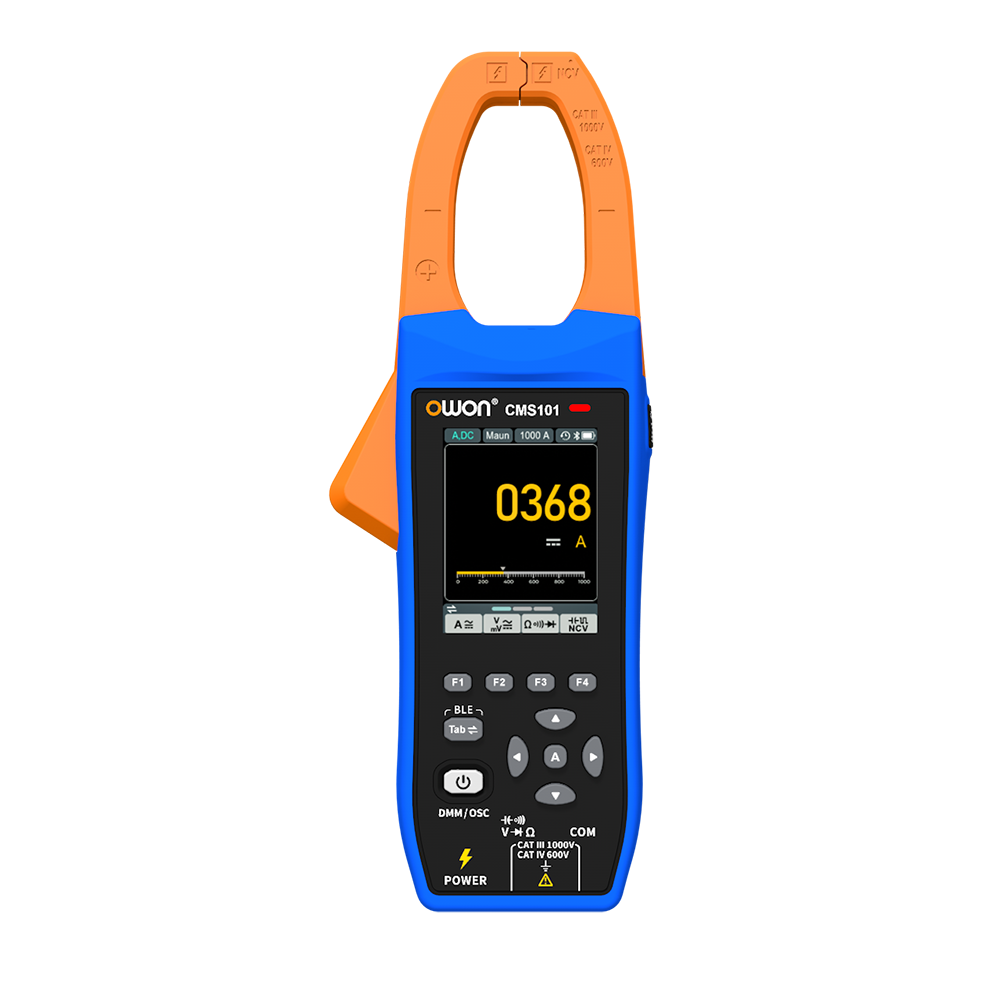

OWON CMS101 Smart AC/DC Clamp Meter (1000AAC/DC,1000VAC/DC, True RMS)

Measurement Range:

DC Voltage (V): 20.000mV~1000A

AC Voltage（V）: 200.00mV~1000.0V

DC Current (A): 20.00A~1000A

AC Current（A）: 20.00A~1000A

Inrush Current（A）: 20.00A~1000A

Resistance（R）: 200.0Ω~100.00MΩ

Capacitance (F): 2.000nF~20.00mF

Frequency (Hz): 200.00Hz ~ 20.000MHz

Duty Cycle: 0.1%-99.9%（Typical: Vrms=1 V, f=100Hz); 0.1%-99.9%（≥1 kHz）

Oscilloscope Specification:

Analog bandwidth: 1MHz（Voltage）; 1kHz(Current)

Sample mode: Real-tine sample

Real-time sampling rate: 5.0MSa/S

Channel: 1

Input impedance: ≥10MΩ

Maximum input voltage: 1000V

Maximum sample current: 1000A

Scan speed: 2.5us/div~10S/div

Time base accuracy: ±(0.01%+0.1div)

Sensitivity: 30mV/div~500V/div

Displacement range: ±3 grid

Sensitivity accuracy: ±(5%+0.2div)

Measurement value: Rms、Period, Freq、Max、Min、PK-PK、Avg

Trigger mode: Auto

Trigger type: Rise、Fall

Other Function:

Bluetooth communication: A smart phone can be used to view the measurement data of the multimeter on the mobile phone side, perform remote control, display data charts, and store the measurement data in CSV format.

Automatic shutdown: When all functions are not used, the meter will automatically shut down in about 10 minutes.(the default is 10 minutes of automatic shutdown when starting, which can be canceled)

Display mode: DMM or OSC

Ture rms: √

Input protection: √

Backlight function: √

Return zero measurement: √

Digital hold: √

Low Battery Indication: √

Other:

Battery: Single section 18650 3.7V

LCD Size: 2.8 inch LCD

Dimension: 248mm（L） x 94.5mm（W） x 37.8mm（D）
