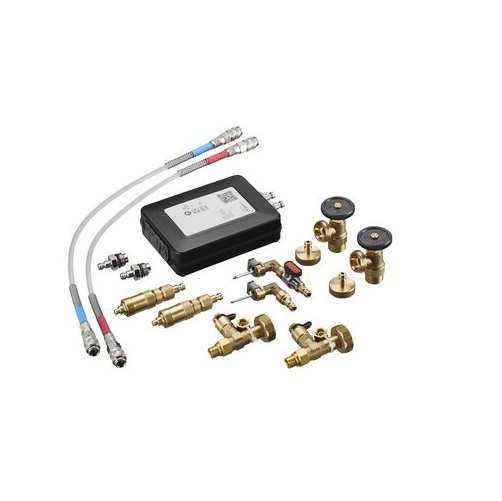

Oventrop OV-DMC 3 Measuring System (-20°C~+120°C)

Specifications:

Max. operating temperature: +120°C

Min. operating temperature: -20°C

Max. operating pressure: 20 bar (2000 kPa)

Max. differential pressure: 2.5 bar (250 kPa)

Temperature measuring range: -20°C up to +120°C

Temperature sensor type: PT 1000

Power supply:

- via LiFe rechargeable battery or enclosed

- USB power pack

- 230V AC 50/60 Hz

Dimensions WxHxD: 107x165x40mm

Weight: 650g

Protection class: IP 64

Interface: WLAN

Minimum requirements on the display devices:

Apple iPhone 4 with at least iOS 7.1

Apple iPad 2 with at least iOS 7.1

Android API devices with at least version 11 which corresponds to Android 3.0 (Honeycomb) and higher

Windows with at least Win 7 and WLAN

Datasheet
