Type: free arm type
Lens:
Magnification: 2x, 4x
Allowable lens dimension (mm): 100×140
Lens Material: Optical glass
Working distance (mm): 2x/160, 4x/110
Lens Type: Fixed
Multi-coating Setting: Not available
Lighting:
Light source: White LEDs 2 pcs.
Wavelength: 400 nm
Input voltage: 100〜240V: 50/60 Hz: Plug Type A
Power consumption: 9W
Dimming Function: Not available
Body:
Product weight: 2X: 3.5kg / 4X: 4.5kg
Overall height (mm): 900
Head Dimensions (mm): 180X237
Possible clamping width (mm): 15～60
AC adapter dimensions (mm): 64x50x27

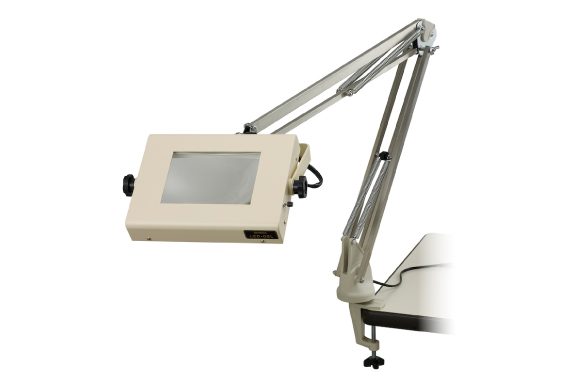

LED-OSL-4 model is an arm-type illumination magnifier that is clamped to a workbench or the like.
power consumption has been reduced by 50% compared to the conventional fluorescent lamp type.
It is the same level of illuminance and diffusion as a fluorescent lamp.
square lens prevents distortion of the outer circumference of the lens that occurs with a round lens, making it possible to work for long periods of time.
ON/OFF switch is located on the head for improved operability.
It is equipped with an AC adaptor for power supply.
“OSL-PUL (power-up lens)” is available as an option to increase the magnification from 2X to 4X. (Only the product with a 2x lens can be used.
