Flow Rate: 4 L/min
Technology Employed: Claind's Pressure Swing Adsorption (PSA) Fast Purity Process
Output Pressure:
0 - 87 PSI
0 - 6 bar
Purity: up to 99.5%
Moisture: < -50 °C dew point ATP +/- 2 °C ATP
Air Input Characteristics:
Particulate ≤ 0.01 µm
Oil vapors ≤ 0.01 mg/m^3
Moisture ≤ 3°C dew point ATP
Min pressure: 8 bar
Min flow rate: 18 L/min
Electrical Supply: 115/230 V; +/- 10% 50-60 Hz 50 w
Protection Index: IP20
Noise:
< 50 dBA for 98% of operation time
< 60 dBA for 2 sec. each cycle
Operating Temperature: 41 °F - 95 °F (5°C - 35°C)
Environmental Humidity: maximum of 90% without condensation
Maximum Altitude :
2000 meters above sea level
6561.68 feet above sea level
Dimensions:
Height: 18.6" (47cm)
Width: 14.9" (38cm)
Depth: 20.8" (53cm)
Weight: 62lbs (28kg)
Pneumatic Connections:
Compressed air inlet: G 1/8" female
Nitrogen outlet: G 1/8" female
DESCRIPTION

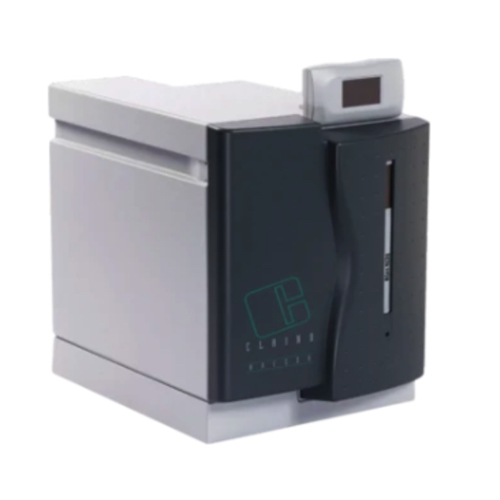

The NiGen Micro is capable of distributing 4 L/min at a purity of up to 99.5%. It is ready to be connected to a dedicated AirComp compressor, and parallel connection allows for up to 4 stackable generators in a tower configuration. It features a CPU with touch screen display, which can be linked to a generator using CAN-BUS. This enables monitoring of the operating status and provides access to the maintenance menu, alarm reports, and functional parameters.
