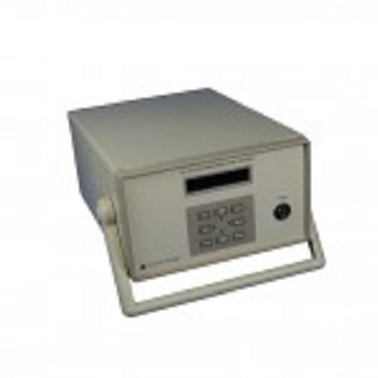

OPTRONIC OL 410-200 Precision Lamp Source (200 W)

Power Output (Watts Maximum): 200 Watts

Voltage output (VDC Maximum): 32 Volts DC

Current Output (ADC Maximum): 8.00 Amps DC

Minimum Lamp Impedance (Ohms): 1.00

Resolution (A): 0.001

Accuracy (% of Full Scale): 0.02%

Stability After Warm-up: 10ppm

Line Voltage Sensitivity: < 2 ppm/ V

Temperature Sensitivity: < 25 ppm/ °C

Power Input Current @ 100/ 115/ 200/ 230 VAC: 6 / 6 / 3.2 / 3.2 A

Operating Temperature Range: 15°C to 35°C

Operating Humidity Range: 10% to 85% (Non-condensing)

Dimensions (inches): 14.00" D x 9.38" W x 5.38" H

Dimensions (cm): 35.56 cm D x 23.83 cm W x 13.67 cm H

Weight: 21.5 lbs (9.8 kg)

Output Connector: Banana Jacks
