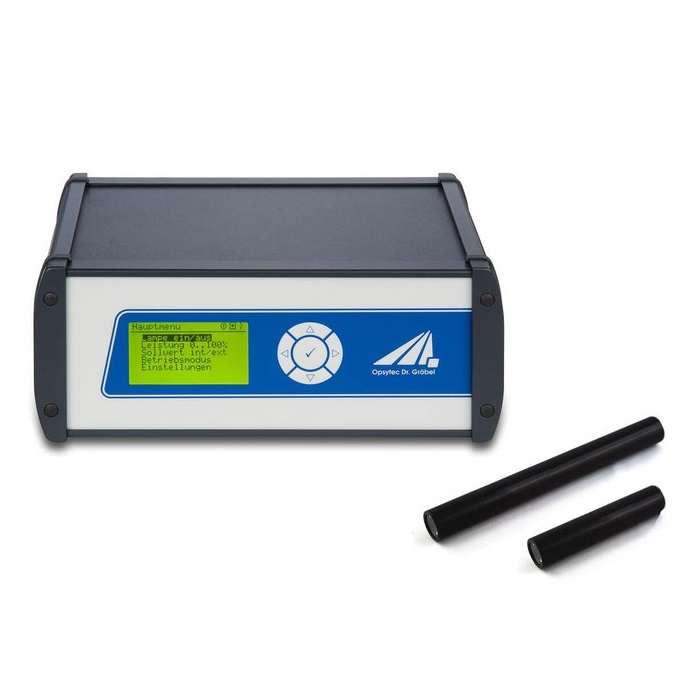

Opsytec Dr.Grobel LEDCONTROL S MultiSpot UV-LED LedControl (1 spot UVLED)

Number of UVLED-Spots: 1 spot (LedControl S)

Functions: 2 to 100%, each spot separate timer, continuous operation Master /slave mode

Display: graphical, 128 x 64 px

Connections: Interlock

Interface option

dimming in (0-10V), common

Trigger (IN/OUT), common

Terminals, Interface option: Galvanically isolated

Signals, Interface option: 24 V, 5 mA max

Programming, optional: RS485, RS232 or USB

Dimensions: 185 x 251 x 100 mm (S/5S)

Cooling: Aircooling

Operating temperature: 5 to 40 °C

Storage temperature: -10 to 60 °C

Humidity: < 80%, non-condensing

Internal security: circuit Over-temperature, LED N.C.

Power (el.): 20 W - 100 W

Mains: 100 - 240 V, 50/60 Hz

Scope of delivery

LedControl S, UVLED Spot with optic, mains cable, manual

>> Please specify wavelength, optics and options.
