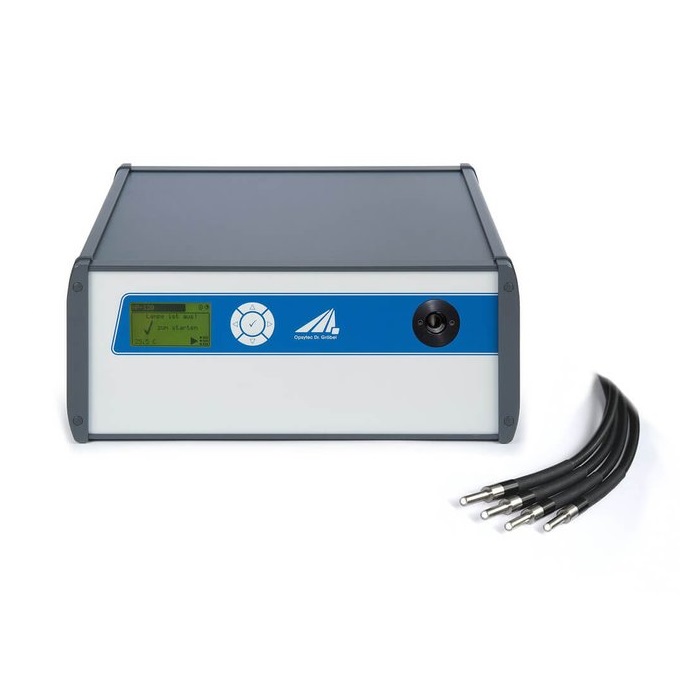

Opsytec Dr.Grobel HP-120i UV Point Source (280~700 nm)

UV/VIS emission: ~ 8 W

UV-A emission: > 4 W

Wavelength: 280 - 700 nm

Light guide

light guide, Ø 5 or 8 mm

multiple light guides, Ø 3mm

length 1 m , opt. up to 4 m

Lamp power: 120 W

Lamp lifetime: 2000 h (typical)

Dimensions: 305 mm x 358 mm x 145 mm

Weight: ~ 8,2 kg

Mains: 110 - 230 VAC, 50/60 Hz

Operation temperature: 5 to 40 °C

Storage temperature: -10 to 60 °C

Humidity: < 80%, non-condensing

Scope of delivery

HP-120i, original lamp, mains cable

Datasheet

Features

• Irradiance of up to 15W/cm²

• Integrated shutter and timer for precise dose control

• Lamp lifetime of 2000 h (typical)

• Single and multi-spot light guides

• Timer and trigger funtions adjustable

• Graphical display
