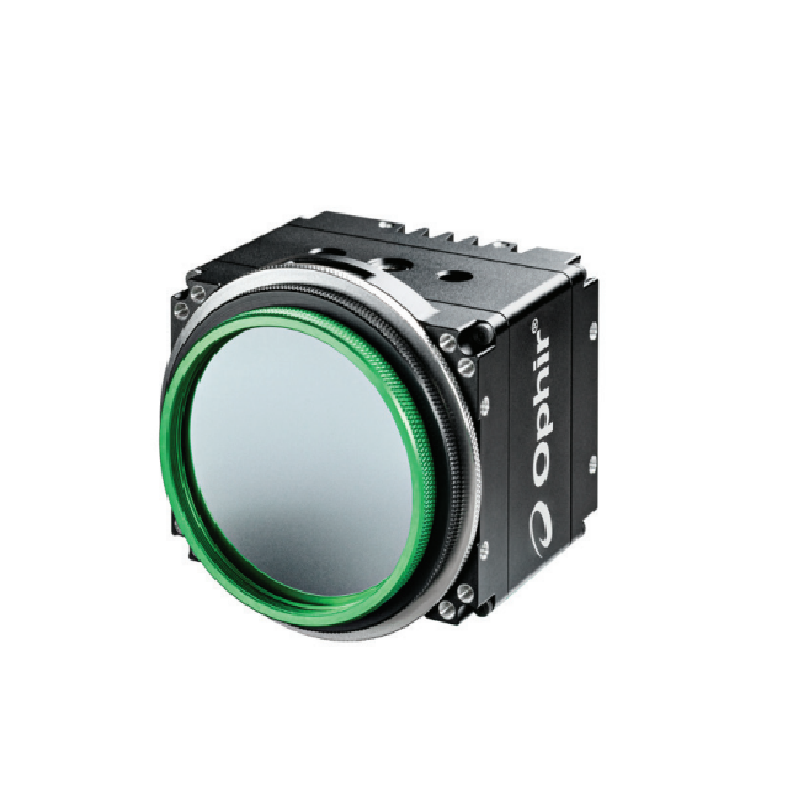

Ophir SP504S Beam Profiling Camera (340 - 1100nm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Wavelengths: 340 - 1100nm
Beam Sizes: 45μm - 23mm
Interface: GigE (POE)
Sensor Type: CMOS, Global shutter
Compatible Light Sources: CW, Pulsed
Active Area: 23mm x 23mm
Number of effective pixels: 5120 x 5120
Effective Pixel Pitch: 4.5µm x 4.5µm
Damage threshold: 50W/cm2/ 1J/cm for < 100ns pulse width
Dynamic Range: 44.6 dB
Frame Rate at Full Resolution: 4.5fps
Dimensions: 68mm x 68mm x 62.6mm
Compliance: CE, UKCA, China RoHS
BeamGage Professional: BGP-G-SP504S
