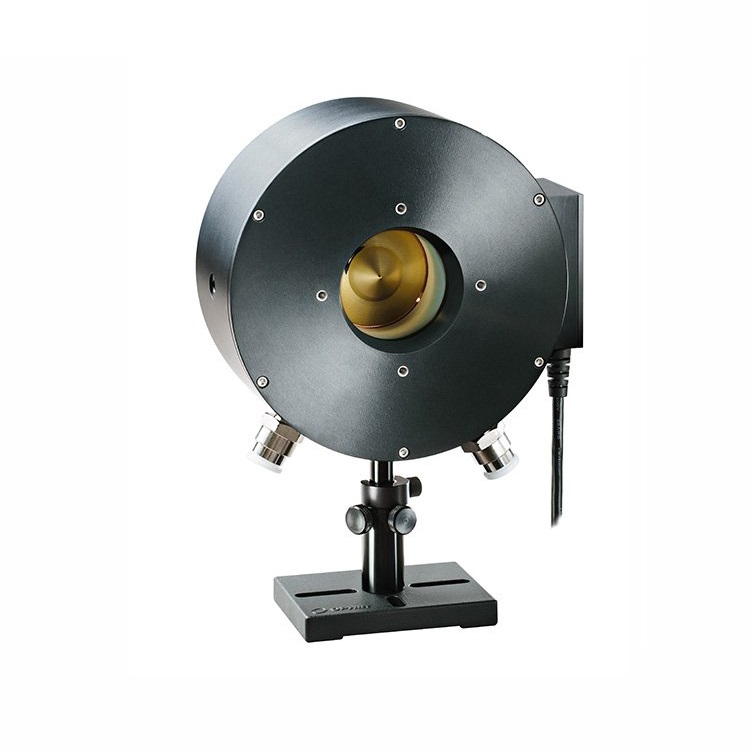

Ophir 16K-W-BB-55 High Power Thermal Sensor and Power Puck (100W-16,000W)

Absorber Type: Beam deflector + broadband absorber

Aperture: Ø55mm

Spectral Range: 0.8-2µm, 10.6µm

Power Range: 100W-16,000W

Energy Range: N.A.

Backscattered Power: ~3.5% without Scatter Shield, ~1% with Scatter Shield

Dimensions: Ø170 W x 82 D (mm)

Max Pulse Energy: N.A.

Max Average Power Density: 10kW/cm²

Response Time: 3.5 s

Max Energy Density (for <100ns): N.A.

Max Energy Density (for 2ms): N.A.

Max Average Power: 16kW

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS
