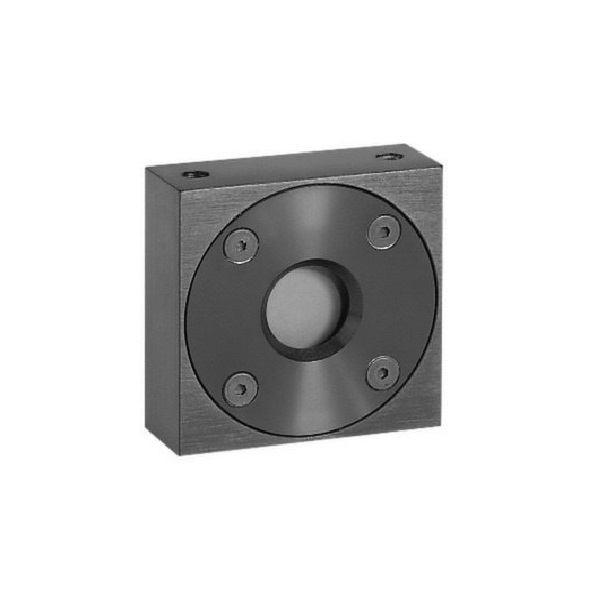

Aperture: Ø12mm
Spectral Range: 0.19-20µm
Power Range: 10mW-20W
Energy Range: 6mJ-10J
Dimensions: 38 L x 38 W x 14 D (mm)
Max Average Power Density: 23kW/cm² at 20W
Response Time: 0.8 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 20W heat sinked
Communication: N.A.
Compliance: CE, UKCA, China RoHS
