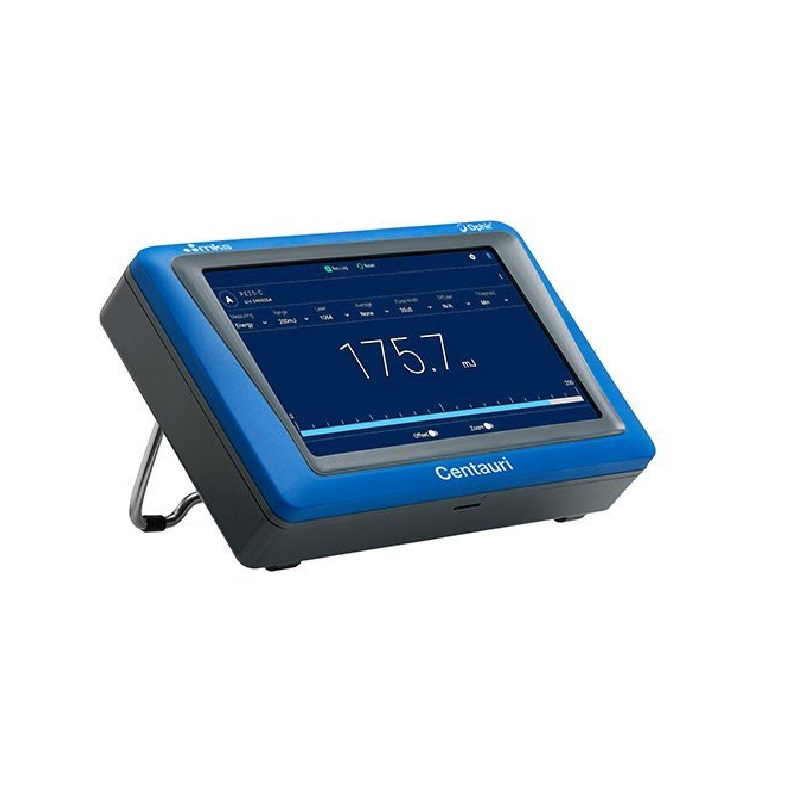

Ophir Centauri Dual Channel Laser Power and Energy Meters (Dual channel)

Power Meter: Brilliant color touch-screen TFT 1064 x 600 pixel graphics LCD. Large 16mm digits.

I/O's: USB, RS232 and user selectable 1,2,5 and 10 Volt full scale analog output; TTL Output; External Trigger Input; Loudspeaker for Audio Warnings

Screen Refresh: 15 times/sec

Case: Molded high-impact plastic with optimized angle kickstand. Rubberized sides for easy grip and protection against damage.

Size: Compact 47mm L x 200mm W x 130mm H (Weight 1kg)

Battery: Rechargeable Li-ion batteries with typically 6 hours between charges. The charger also functions as an AC adapter.

Multisensor Option: Two sensors can be connected and measure independently

Sensor Features: Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors (a)

Communication: RS232, USB, Ethernet*

Compliance CE, UKCA, China RoHS

Datasheet
