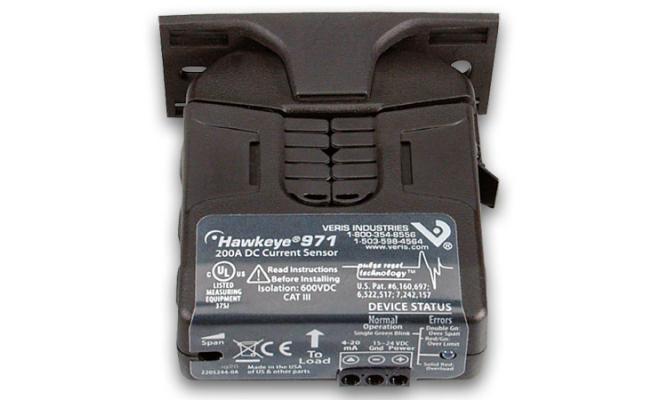

Onset T-VER-971BP-200 Split-Core Bi-Polar DC Transducer Sensor (12 - 24 DC)

DC Amperage (bi-polar)

Measurement range: +/- 2 to +/- 200 (via span adjust)

Accuracy (below 100A span): +/- .5 A

Accuracy (above 100A span): +/- .5% full scale

Sensor supply: 12 - 24 DC (15 VDC min. for currents > 120 A), 35 mA no-load to 110 mA at 200 A current

Isolation: 600 VAC rms

Operating temperature range: -30 to 60C (-22 to 140F)

Humidity range: 10 - 90% non-condensing

Response time: 2 sec.

Output: (bi-polar) 4 - 20mA

Dimensions: 3.1x2.8x1.4 in. (79x70x36 mm)

Weight: 5.25 oz.

Sensor opening: 1.1x.9 in. (28x23 mm)

For use with HOBO® H22, U12, U30, UX120-006M, MX1104, MX1105, and RX3000 data loggers and HOBO ZW data nodes
