Onset T-ASH-G2-100 Ashcroft Gauge Pressure Sensor (100 psig)

Measurement ranges: 100 psig

Compensated temp range: -40° to 125°C (-40° to 257°F)

Accuracy:

±1% FS from -20° to 85°C (-4° to 185°F)

±1.5% FS -40° to -20°C and 85° to 125°C (-40° to –4°F and 185° to 257°F)

Non-linearity: less than ±0.1% of span typical

Non-repeatability: less than ±0.03% of span typical

Hysteresis: less than ±0.01 of span typical

Stability: less than ±0.25% of span/year

Durability: tested to 50 million cycles

Overpressure: 200% FS

Response time: less than 1 msec

Sensor Connections:

Output signal: 0-5 VDC, 3 wire

Power: 9-36 VDC, 5mA

Warm-up Time: <500ms

Operating temp range: -40° to 125°C (-40° to 257°F)

Operating humidity range: 0 to 100% RH, no effect

Insulation breakdown voltage: 100 VAC

Insulation resistance: greater than 100 megohms at 100 VDC

Dimensions: 2.9 cm diameter x 6.4 cm long (1.15 in. diameter x 2.5 in. long)

Outer cable diameter dimension: 0.21 in. (5.4-mm)

Weight: 89.4g (3.15oz)

Number of data channels: 1

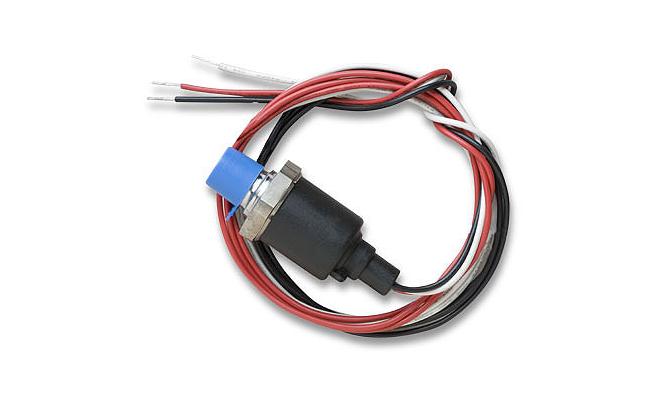

The Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids, with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F) and only ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to -4°F and 185° to 257°F).

Requirements for use with specific data loggers:

  HOBO MX1100 series: a 0-5 Volt DC input cable (SD-VOLT-05) and external power provided by an AC adapter (AC-SENS-1)

  HOBO U12, UX120-006M or ZW series: a 0-5 Volt DC input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1)

  HOBO RX3000: an analog input module (RXMOD-A1)

  HOBO U30: an analog input module (VIA)

  HOBO H22: an analog input module (S-FS-CVIA)
