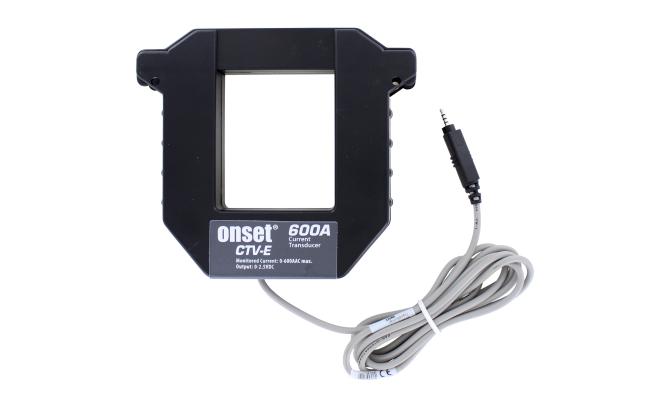

Onset SD-CT-600 Self-Describing Current Transformer Sensor (60-600)

Current Range: 60-600

Accuracy: ±2.1% of full scale (includes logger accuracy)

Response Time (milliseconds): 490

Input Current: AC current, sine wave, single-phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag

Output: 0-2.5 V DC

Voltage Rating: 600 V AC

Temperature Rating: -15 to 40°C (5° to 104°F)

Cable: 1.8 m (6 ft.)

Window Size: 74 x 62 mm (2.92 x 2.46 inch)

Dimensions: 135 x 150 x 28 mm (5.3 x 5.91 x 1.12 inch)
