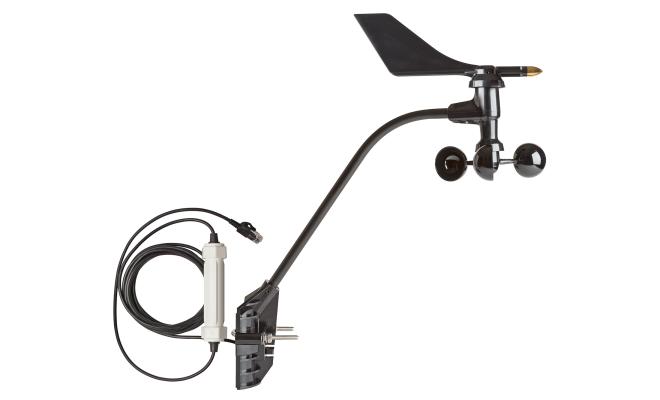

Onset S-WCF-M003 Davis Wind Speed and Direction Smart Sensor (0~170 mph, 0~355 degrees)

Operating Temperature Range: -40°C to 65°C (-40°F to 149°F)

Dimensions: 470 x 191 x 121 mm (18.5 x 7.5 x 4.75 in.)

Weight: 1.332 kg (2 lb, 15 oz)

Bits per Sample: 8 for each channel, 24 total

Number of Data Channels: 3

Cable Length Available: 3 m (9.8 ft)

Length of Smart Sensor Network Cable: 0.5 m (1.6 ft)

Wind speed/gust:

Measurement Range: 0 to 76 m/sec (0 to 170 mph)

Accuracy: ±1.1 m/sec (±2 mph) or ±5% of reading, whichever is greater

Resolution: 0.5 m/sec (1.1 mph)

Starting Threshold: ≤1 m/sec (2.2 mph)

Turning radius: 108 mm (4.25 in.)

Wind Direction:

Measurement Range: 0 to 355 degrees

Accuracy: ±7 degrees

Resolution: 1 degrees (0 to 355 degrees)

Starting Threshold: 1 m/sec (2.2 mph)

Turning radius: Approximately 135 mm (5.25 in.)

Compatible with all HOBO weather station loggers, HOBOware, and HOBOlink. This sensor offers the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget. Features a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.

Manual
