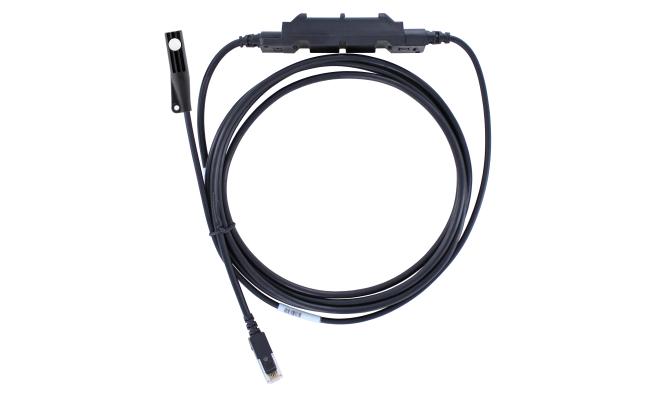

Onset S-THC-M008 Temperature/Relative Humidity (8m cable) Smart Sensor (-40°C~75°C; 0-100%)

Measurement Range:

Temperature: -40°C to 75°C (-40°F to 167°F)

RH: 0-100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%

Accuracy:

Temperature: ±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F); ±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F); ±0.25°C from 70° to 75°C (±0.45°F from 158° to 167°F)

RH: ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical

Resolution:

Temperature: 0.02°C

RH:0.01% RH

Bits per sample:

Temperature: 16

RH: 16

Response time:

Temperature: Without solar radiation shield: 3 minutes, 45 seconds in air moving 1 m/s; With RS3-B solar radiation shield: 6 minutes, 30 seconds in air moving 1 m/s

RH: Without solar radiation shield: 15 seconds in air moving 1 m/s; With RS3-B solar radiation shield: 30 seconds in air moving 1 m/s

Operating Temperature Range: -40°C to 75°C (-40°F to 167°F)

Sensor Dimensions: 45.97 x 11.43 x 10.16 mm (1.81 x 0.45 x 0.40 inches)

Weight: 110 g (3.88 oz)

Number of Data Channels: 2

Cable Lengths Available: 8 m (26.2 ft)

Length of Smart Sensor Network Cable: 6 m (19.6 ft)
