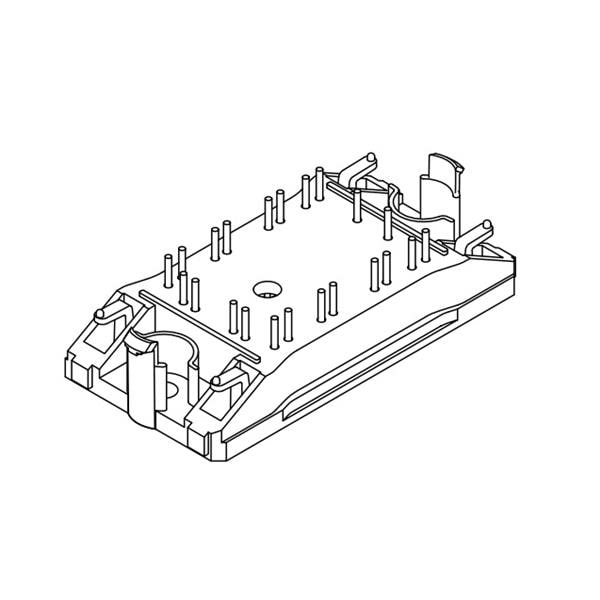

onsemi NXH80B120H2Q0SG SiC IGBT Modules PIM 1200V 40A DU BST SiC DIODE
Manufactureronsemi(View more products from this manufacturer)
ModelNXH80B120H2Q0SG
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: SiC
Configuration: Dual
Mounting Style: Press Fit
Pd - Power Dissipation: 103 W
Gate-Emitter Leakage Current: 200 nA
Maximum Gate Emitter Voltage: 20 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Collector- Emitter Voltage VCEO Max: 1.2 kV
Collector-Emitter Saturation Voltage: 2.2 V
Continuous Collector Current at 25 C: 40 A
