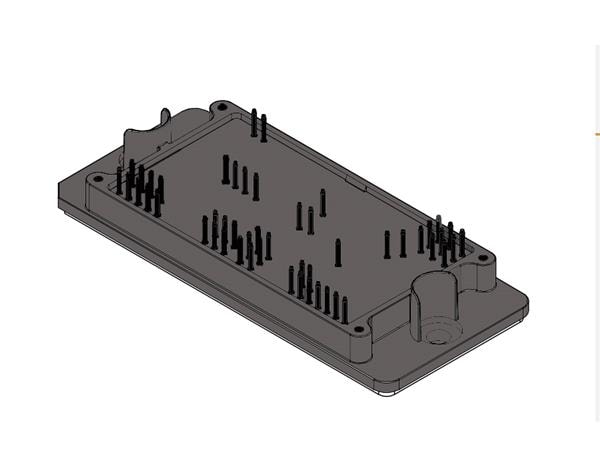

onsemi NXH800A100L4Q2F2S1G IGBT Modules IGBT Module, A-Type NPC 1000 V, 800 A IGBT Split A-type NPC positive, Solder pins
Manufactureronsemi(View more products from this manufacturer)
ModelNXH800A100L4Q2F2S1G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Configuration: Triple
Mounting Style: Press Fit
Pd - Power Dissipation: 714 W
Gate-Emitter Leakage Current: 2 uA
Maximum Gate Emitter Voltage: 20 V
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 40 C
Collector- Emitter Voltage VCEO Max: 1 kV
Collector-Emitter Saturation Voltage: 1.69 V
Continuous Collector Current at 25 C: 309 A
