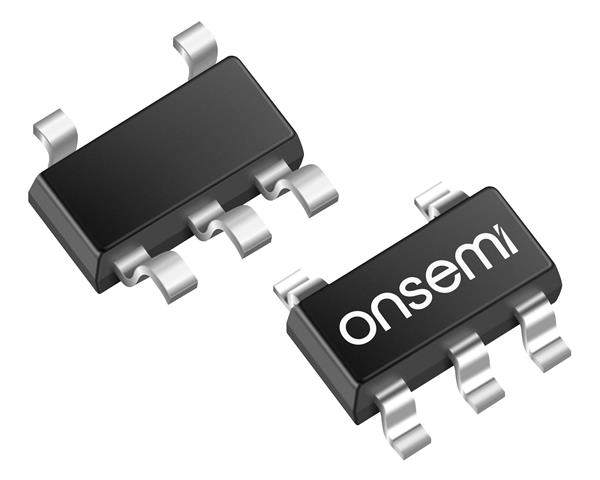

onsemi NSV60601MZ4T3G BJTs - Bipolar Transistors NPN 60V/6A LOW VCE(SAT)

Technology: Si

Unit Weight: 110 mg

REACH - SVHC: Details

Configuration: Single

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Transistor Polarity: NPN

Pd - Power Dissipation: 2 W

Gain Bandwidth Product fT: 100 MHz

Emitter- Base Voltage VEBO: 6 V

Collector- Base Voltage VCBO: 100 V

Continuous Collector Current: 6 A

Maximum DC Collector Current: 6 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

DC Collector/Base Gain hfe Min: 50

Collector- Emitter Voltage VCEO Max: 60 V

Collector-Emitter Saturation Voltage: 300 mV
