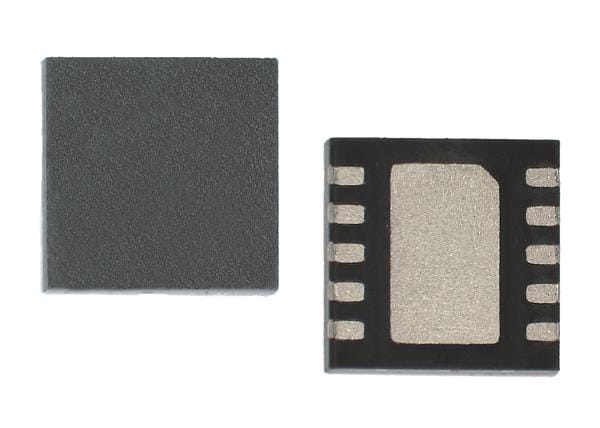

onsemi NCV51513ABMNTWG High-Side, Low-Side Automotive 130 V, 2.0/3.0 A High and Low Side Drivers with Dead Time & Interlock 130 V, 2.0/3.0 A High and Low Side Drivers with 80 ns Dead Time & Input Filter

Fall Time: 7 ns

Rise Time: 9 ns

Logic Type: CMOS, TTL

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: 19 V

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Input Voltage - Max: 19 V

Supply Voltage - Max: 19 V

Supply Voltage - Min: 8 V

Propagation Delay - Max: 100 ns

Operating Supply Current: 1.8 mA

Maximum Turn-On Delay Time: 100 ns

Maximum Turn-Off Delay Time: 100 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
