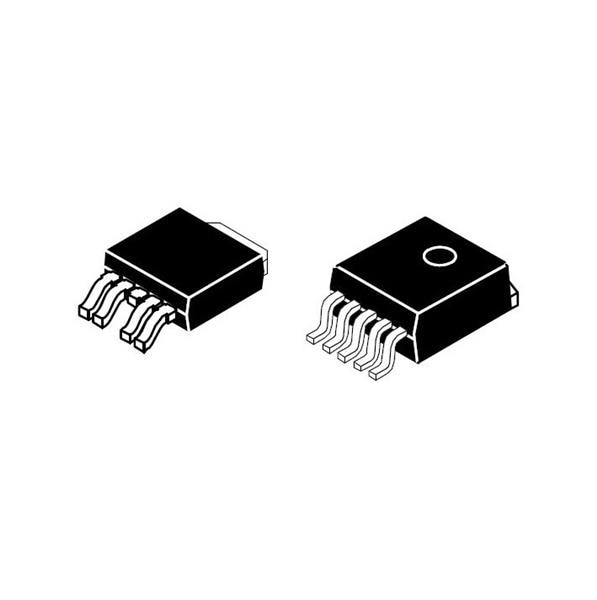

onsemi NCV4276CDSADJR4G Low Dropout Voltage Regulator LDO Regulator, 400 mA, 45 V, 95 uA IQ?, with Enable Adjustable, 2%

Polarity: Positive

Output Type: Adjustable

Unit Weight: 340 mg

REACH - SVHC: Details

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 400 mA

Output Voltage: 2.5 V to 20 V

Dropout Voltage: 250 mV

Line Regulation: 4 mV

Load Regulation: 3 mV

Number of Outputs: 1 Output

Quiescent Current: 10 uA

Input Voltage - Max: 45 V

Input Voltage - Min: 4.5 V

Output Voltage Range: 2.5 V to 20 V

Dropout Voltage - Max: 500 mV

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
