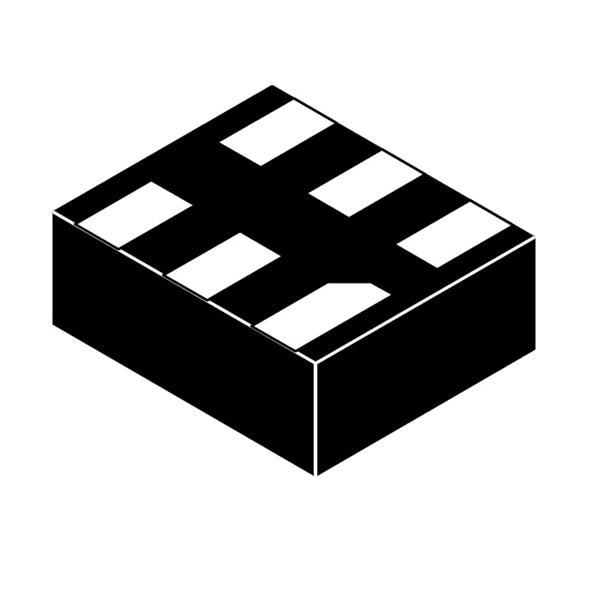

onsemi NCV2200AMUTBG Analog Comparators ANA COMPARATOR UDFN6

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Push-Pull

Unit Weight: 54.887 mg

Qualification: AEC-Q100

Response Time: 1.1 us

Mounting Style: SMD/SMT

Comparator Type: General Purpose

Number of Channels: 1 Channel

Supply Voltage - Max: 6 V

Supply Voltage - Min: 850 mV

Propagation Delay Time: 1 us

Ib - Input Bias Current: 1 pA

Operating Supply Current: 10 uA

Vcm - Common Mode Voltage: 6 V

Output Current per Channel: 70 mA

Vos - Input Offset Voltage: 10 mV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 65 dB

PSRR - Power Supply Rejection Ratio: 55 dB
