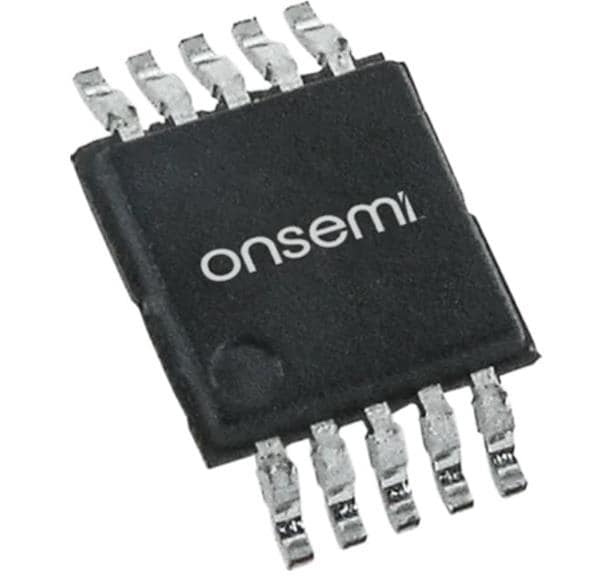

onsemi NCV21671DM025R2G Current-Shunt Monitors Current Sense Amplifier Current-Shunt Monitors, Zero-Drift, 40 V Common Mode, Bidirectional, Shutdown 40V Current-Shunt Monitors, Bidirectional, Int. filters, Shutdown

Gain V/V: 100 V/V

Shutdown: Shutdown

Gain Error: 0.5 %

Input Type: Differential

Output Type: Voltage

Settling Time: 30 us

3 dB Bandwidth: 40 kHz

Amplifier Type: Differential Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 0.3 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Pd - Power Dissipation: 200 mW

Ib - Input Bias Current: 35 uA

Operating Supply Current: 10 mA

Vcm - Common Mode Voltage: - 100 mV to 40 V

Vos - Input Offset Voltage: 19 uV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 56 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 134 dB

PSRR - Power Supply Rejection Ratio: 10 uV/V
