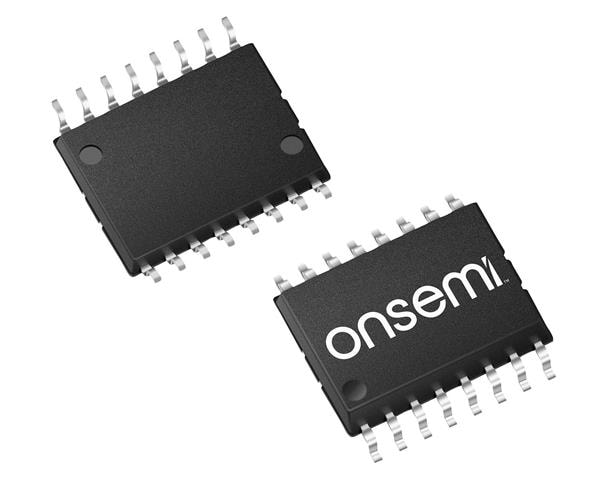

onsemi NCP51560ABDWR2G High-Side, Low-Side NCP51560ABDWR2G

Shutdown: Shutdown

Fall Time: 10 ns

Technology: SiC

Configuration: Dual

Mounting Style: SMD/SMT

Output Current: 4.5 A, 9 A

Output Voltage: 6.5 V to 30 V

Isolation Voltage: 5 kVrms

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Number of Channels: 2 Channel

Input Voltage - Max: 5 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 5 V

Supply Voltage - Min: 3 V

Propagation Delay - Max: 60 ns

Operating Supply Current: 7.15 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
