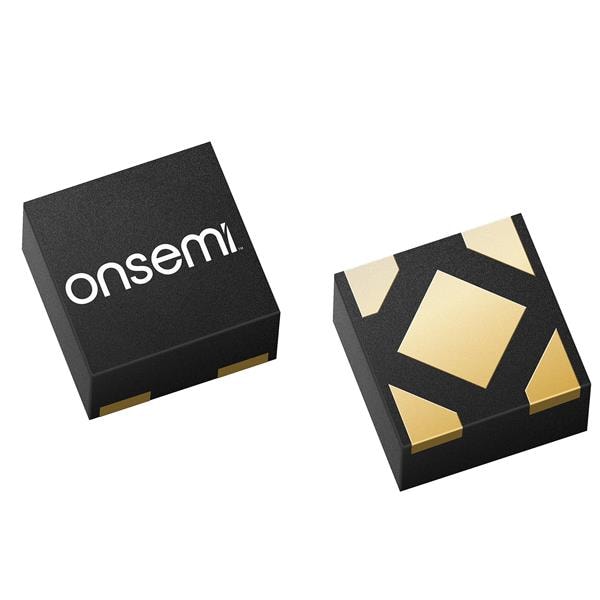

onsemi NCP134AMX135TCG CMOS Voltage Regulator LDO Regulator, 500 mA, Ultra-Low Dropout, with Bias Rail 1.35V Output Active Discharge

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 1.35 V

Dropout Voltage: 140 mV

Line Regulation: 0.01 %/V

Load Regulation: 1.5 mV

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 800 mV

Dropout Voltage - Max: 250 mV

Ib - Input Bias Current: 500 nA

Voltage Regulation Accuracy: 1.5 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
