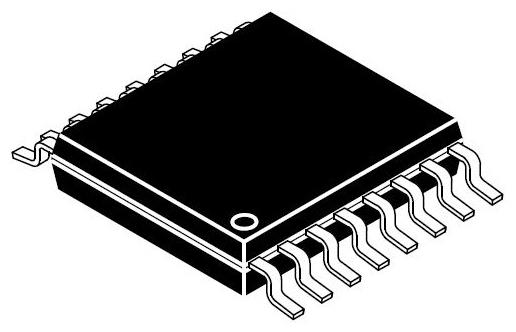

onsemi NCD9830DBR2G Analog to Digital Converter 8-BIT 8-CHANNEL ADC

Gain Error: 0.5 LSB

Input Type: Differential/Single-Ended

Resolution: 8 bit

Unit Weight: 45.400 mg

Architecture: SAR

Sampling Rate: 70 kS/s

Interface Type: I2C

Mounting Style: SMD/SMT

Reference Type: External, Internal

Reference Voltage: 2.5 V

Moisture Sensitive: Yes

Number of Channels: 8 Channel

Number of Converters: 1 Converter

Analog Supply Voltage: 2.7 V to 5.5 V

Pd - Power Dissipation: 5 mW

INL - Integral Nonlinearity: 0.5 LSB

SNR - Signal to Noise Ratio: 49 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.1 LSB

ENOB - Effective Number of Bits: 8 bit

THD - Total Harmonic Distortion: - 72 dB

SFDR - Spurious Free Dynamic Range: 68 dB

SINAD - Signal to Noise and Distortion Ratio: 50 dB
