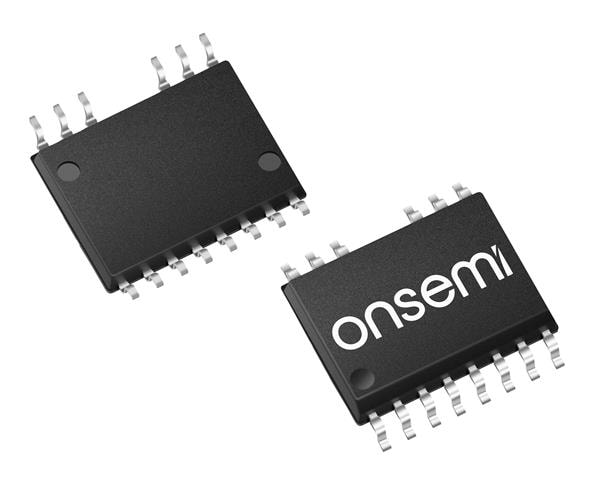

onsemi NCD57540DWKR2G High-Side, Low-Side Isolated Dual-Channel IGBT Gate Driver with >8mm Creepage and Clearance

Features: High Common Mode Transient Immunity

Fall Time: 10 ns

Rise Time: 12 ns

Technology: Si

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 6.5 A

Output Voltage: 100 mV, 14.8 V

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 20 V

Input Voltage - Min: 3.3 V

Pd - Power Dissipation: 1.06 W

Propagation Delay - Max: 90 ns

Operating Supply Current: 10 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
