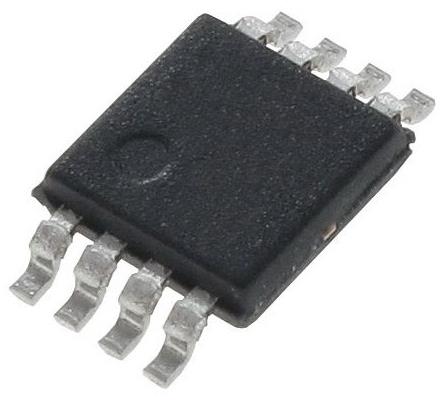

Logic Type: Dual 2-Input OR
Logic Family: NC7WZ
Logic Function: OR
Mounting Style: SMD/SMT
Output Voltage: 0 V to 5.5 V
Number of Gates: 2 Gate
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 1.65 V
Number of Input Lines: 4 Input
Number of Output Lines: 2 Output
Pd - Power Dissipation: 500 mW
Propagation Delay Time: 5.8 ns
Low Level Output Current: 32 mA
High Level Output Current: - 32 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
