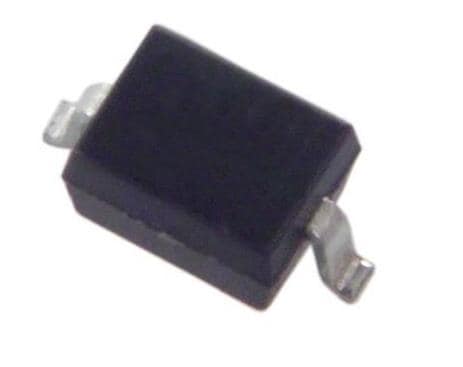

onsemi MM3Z10VT1G Zener Diodes 10V300mW

Width: 1.25 mm

Height: 0.9 mm

Length: 1.7 mm

Unit Weight: 10 mg

Test Current: 5 mA

Configuration: Single

Zener Current: 100 nA

Mounting Style: SMD/SMT

Termination Style: SMD/SMT

Voltage Tolerance: 5 %

Vz - Zener Voltage: 10 V

Vf - Forward Voltage: 900 mV

Zz - Zener Impedance: 20 Ohms

Pd - Power Dissipation: 300 mW

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: 8 mV/K

Ir - Maximum Reverse Leakage Current: 100 nA
