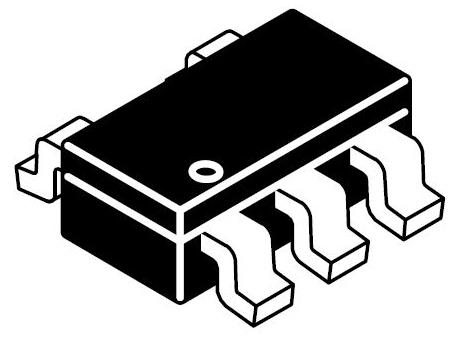

onsemi LM321SN3T1G Operational Amplifiers SINGLE VERSION OF LM358

Gain V/V: 100 V/mV

Shutdown: No Shutdown

Topology: Single

Input Type: Differential

Unit Weight: 37 mg

Amplifier Type: General Purpose Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 400 mV/us

THD plus Noise: 0.02 %

Number of Channels: 1 Channel

Supply Voltage - Max: 32 V, +/- 16 V

Supply Voltage - Min: 3 V, +/- 1.5 V

Ib - Input Bias Current: 10 nA

Operating Supply Current: 10 mA

Vcm - Common Mode Voltage: 0 V to 30.5 V

Ios - Input Offset Current: 1 nA

Output Current per Channel: 40 mA

Vos - Input Offset Voltage: 300 uV

Maximum Dual Supply Voltage: +/- 16 V

Minimum Dual Supply Voltage: +/- 1.5 V

GBP - Gain Bandwidth Product: 750 kHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 40 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 85 dB

PSRR - Power Supply Rejection Ratio: 100 dB
