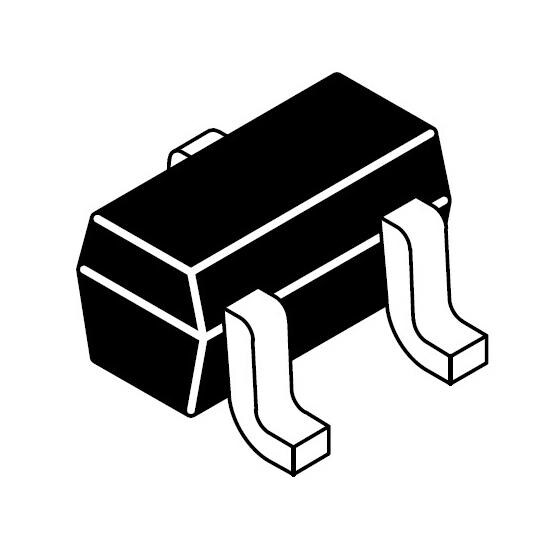

onsemi ESD7102BT1G ESD Suppressors Low Capacitance ESD Protection Diode for High Speed Data Lines, Short-to-Battery Capable, Automotive 16V Protection Diode in SC75

Polarity: Unidirectional

Unit Weight: 2.510 mg

Working Voltage: 16 V

Clamping Voltage: 55 V

Breakdown Voltage: 16.5 V

Termination Style: SMD/SMT

Number of Channels: 2 Channel

Cd - Diode Capacitance: 0.5 pF

Ipp - Peak Pulse Current: 16 A

Vesd - Voltage ESD Air Gap: 15 kV

Vesd - Voltage ESD Contact: 8 kV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 35 W
