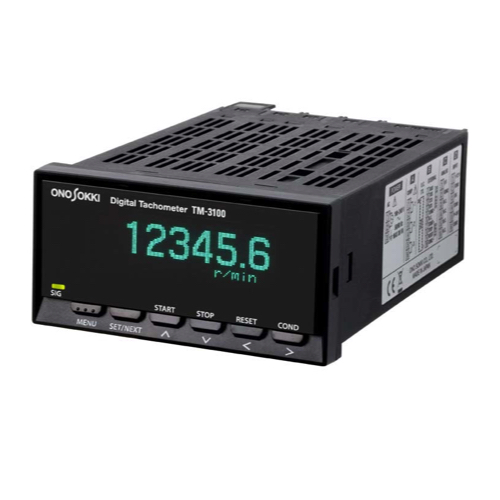

With BCD output of 6-digit display "Open collector output for direct connection with a PLC*. *Output can be optionally changed as TTL level
Display: Fluorescent tube (selectable of three stage brightness) 6-digit green
Display Update: Selectable from 0.2s, 0.4s, 0.5s, 0.6s0.8s,1.0s to 10s (in 1.0s steps)
SIG Indicator: Blinks synchronized with input signals
Error Display: Backup memory error, board error, input frequency error, display digit error, memory full error, step error.
Units: r/s, r/min, r/h, mm/s, m/s, mm/min, km/min, mm/h, m/h, Hz, kHz, ml/s, ml/min, ml/h, l/s
Power Supply for Detectors: Output voltage : 12VDC (± 10%), Max. current : 100mA
Power Supply: 100 to 240VAC, 50/60 Hz
Operating temperature: 0 to +50°C / 32 to 122° F
Outer Dimensions: 96(W) x 48(H) x 148(D) mm
Weight: approx. 310g
Tachometer options : TM-0321 BCD output card (TTL level ), TM-0322 BCD output card (open collector), TM-0330 Analog output card, TM-0340 Comparator output card, TM-0350 RS-232C card, TM-0301 for DC Power capability,AA-8207 BCD cable (3 m).
