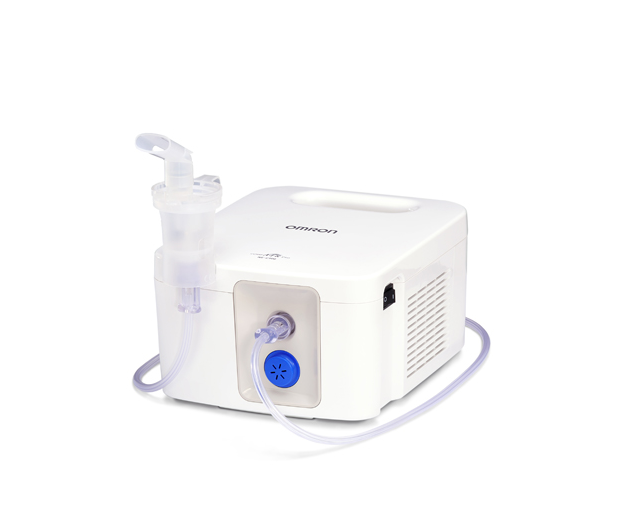

OMRON NE-C900 Compressor Nebulizer (220VA)

Rating: AC 220-240V, 50Hz

Power Consumption: 220VA

Operating Temperature/Humidity: +10°C to +40°C / 30% to 85%RH

Storage and Transport Temperature/Humidity/Air Pressure: -20°C to +60°C / 10% to 95%RH / 700 - 1060hPa

Weight: Approx. 2.2kg (compressor only)

Dimensions: Approx. 175 (W) × 110 (H) ×215 (D) mm (compressor only)

Contents: Compressor, Nebulizer Kit, Air Tube (PVC, 200cm), Mouthpiece, Adult Mask (PVC),Child Mask (PVC), 5 pcs Spare Air Filters, Instruction Manual.

Technical data for the OMRON NE-C900 Compressor with the Nebulizer Kit

Particle Size: **MMAD Approx. 3µm

MMAD = Mass Median Aerodynamic Diameter

Medication Tank Capacity: 7ml maximum

Appropriate Medication Quantities: 2ml minimum - 7ml maximum

Nebulization Rate: *Approx. 0.4ml/min (by weight loss)

Airflow/Compressor Output: *7L/min @100kPa

Aerosol Output: **0.57ml (2ml, 1%NaF)

Aerosol Output Rate: ***0.08ml/min (2ml, 1%NaF)
