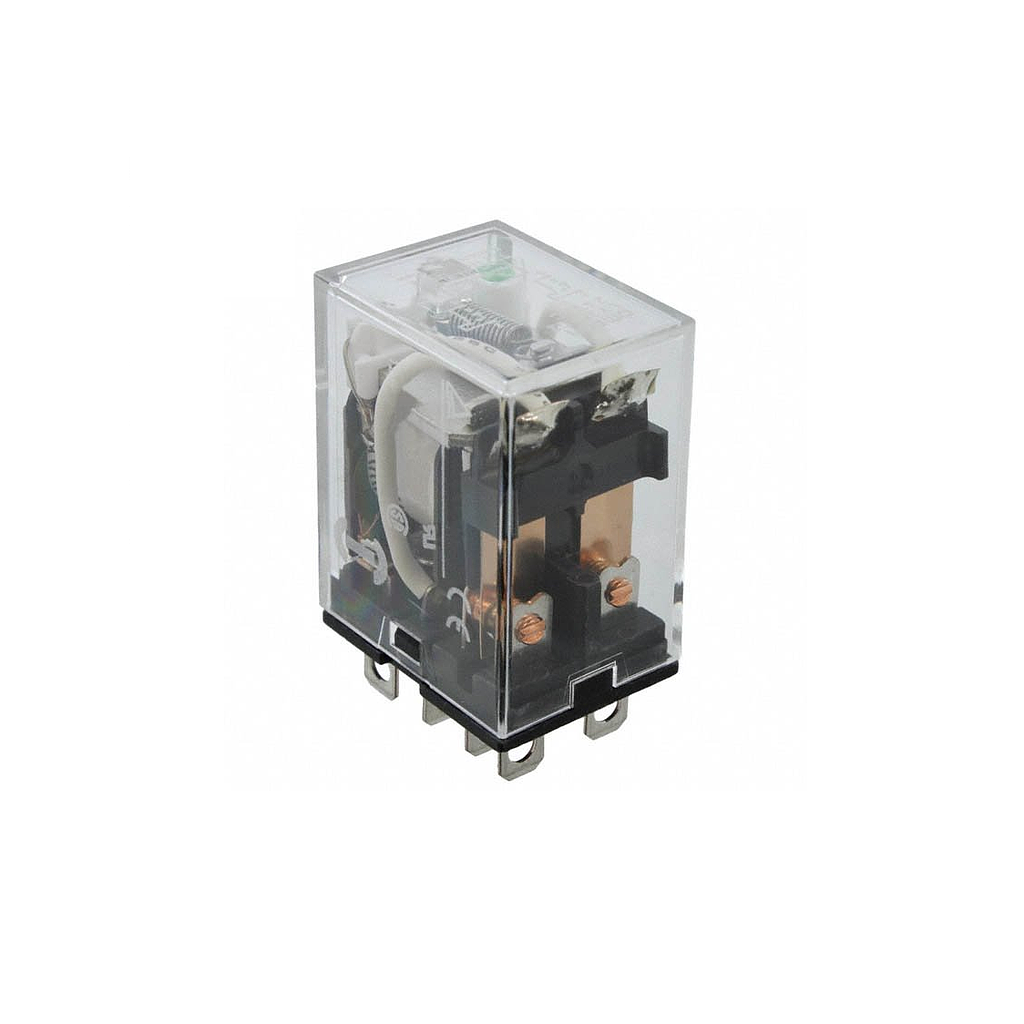

OMRON LY2N DC12 Relay (12VDC, 8 pins)

Coil Voltage: 12VDC

Number of Pins: 8

Pin Shape: Flat

Contact Type: DPDT (Double Pole Double Throw)

Current Rating: 10A

Contact Current (pure resistive load): 10A at 110VAC, 10A at 24VDC

Contact Structure: Single-break

Contact Material: Silver alloy

Mechanical Indicator: No

LED Indicator: Yes

Coil Polarity: No

Coil Reverse Voltage Absorption: No

Cover: Yes

Mounting: Plug-in socket

Connections: Plug-in terminals, Solder terminals

Ambient Temperature: -25...55°C

Ambient Humidity: 5...85%

Relative Weight: 40g

Overall Width: 21.5mm

Overall Height: 28mm

Overall Depth: 36mm

Accessories Included: None
