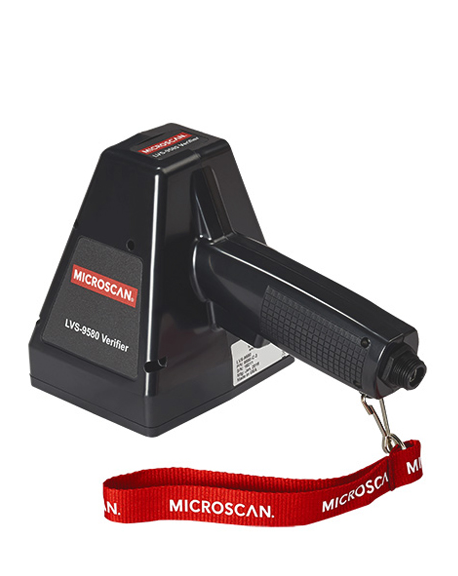

OMRON LVS-9580 Handheld Barcode Verifier

MECHANICAL

Height: 215.9 mm (8.5”)

Width: 120.6 mm (4.75”)

Depth: 139.7 mm (5.5”)

FIELD OF VIEW

Standard: 76.19 mm (3.0”) horizontal

57.15 mm (2.25”) vertical

DPM: 44 mm (1.75") x 44 mm (1.75")

HD: 33 mm (1.3") x 30 mm (1.0")

MINIMUM BAR CODE X-DIMENSION

1D = 4.0 mil (0.10 mm)

2D = 5.9 mil (0.15 mm)

HD: 2D = 2.0 mil (0.05 mm)

MINIMUM PC REQUIREMENTS

PC supplied by customer.

Windows® 7 Professional, Windows® 8.1 Pro, or Windows® 10 Pro;Intel® Core™ i3 or higher; 4 GB RAM; 800 x 600 Screen Resolution; One USB 2.0 port available per unit.

ILLUMINATION

Type: Red filter (660nm)

ELECTRICAL

USB powered 5 VDC @ 180 mA

COMMUNICATIONS

USB 2.0 A plug to Mini-B plug cable 2 m (6.5 ft.)

CAMERA

5.0 megapixel camera

Object Distance: Contact

ENVIRONMENTAL

Operating Temperature: 4° to 46° C (40° to 115° F)

Relative Humidity, Operating: 20% to 80% (non-condensing); Relative Humidity

Storage: 20% to 95% (non-condensing)
