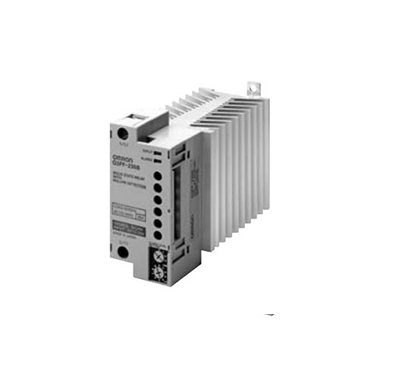

OMRON G3PF-225B 24VDC Solid State Relay with Built-in Current Transformer (1 phase, 9.6-26.4 VDC)

Application: ON/OFF control

Mounting method: DIN rail/screw

Terminal: Screw

Complete with socket: X

LED indicator: ✓

Rated operational voltage, AC: 100-240 V

Operating voltage range, AC: 75-264 V

Control current max.: 10 mA

Must operate voltage max.: 9.6 V

Must release voltage min.: 1 V

Maximum operating temperature: 60 °C

Minimum operating temperature: -20 °C

Isolation: Phototriac

Functions: HB/HS alarm for 1-phase heaters

Number of phases: 1

Rated operation current Ie at AC-1: 25 A

Product Height (unpacked): 100 mm

Product Width (unpacked): 45 mm

Product Depth (unpacked): 110 mm

Supply voltage DC: 9.6-26.4 V

Switching at zero-crossing: ✓
