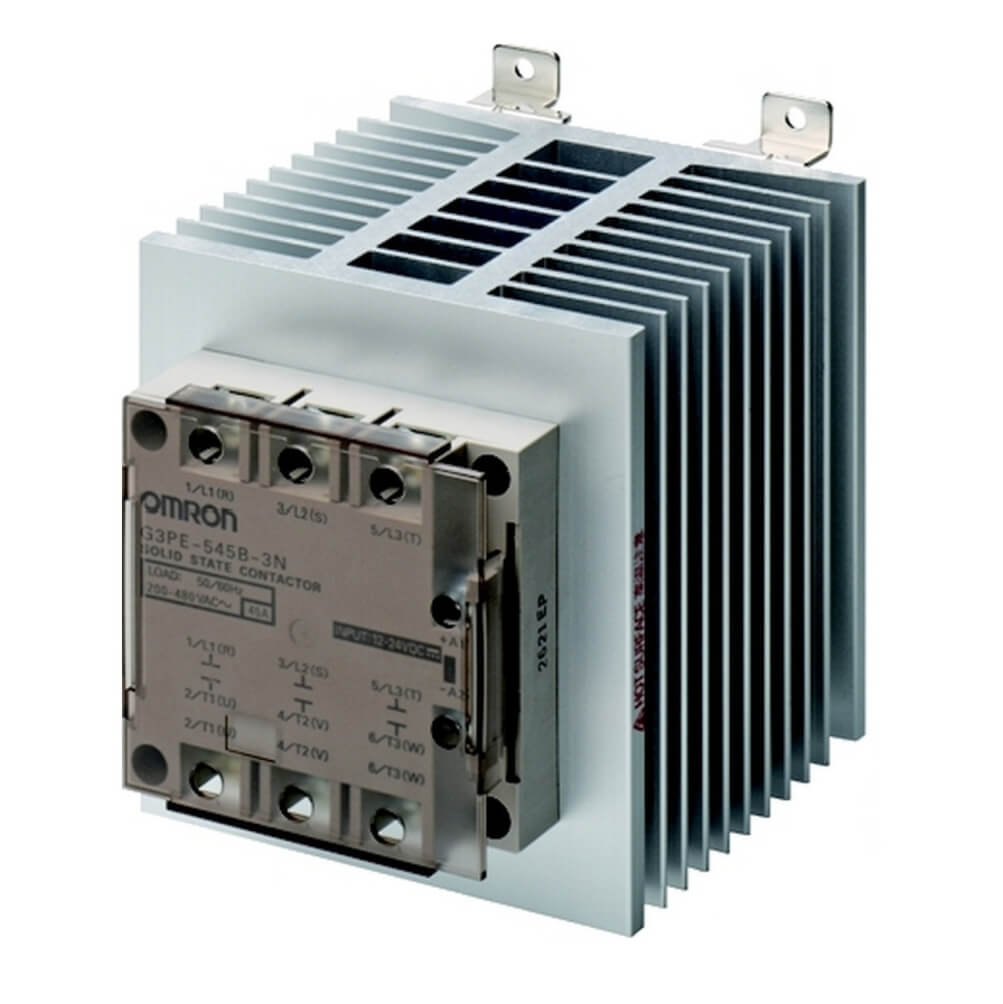

OMRON G3PE-545B-3H 12-24VDC Solid State Relay for Heaters (3 phase; 12-24VDC)

Number of phases: 3

Number of poles: 3

Mounting method: Screw

Terminal: Screw

Complete with socket: X

LED indicator: ✓

Rated operational voltage, AC: 200-480 V

Operating voltage range, AC: 180-528 V

Rated operation current Ie at AC-1: 8 A

Permissible I²t value: 1260 A²s

Applicable heater capacity (AC1: resistive load): 37.4 kW

Product Height (unpacked): 84.5 mm

Product Width (unpacked): 80 mm

Product Depth (unpacked): 35 mm

Supply voltage DC: 12-24 V

Control current max.: 10 mA

Must operate voltage max.: 9.6 V

Must release voltage min.: 1 V

Maximum operating temperature: 80 °C

Minimum operating temperature: -30 °C

Isolation: Phototriac
