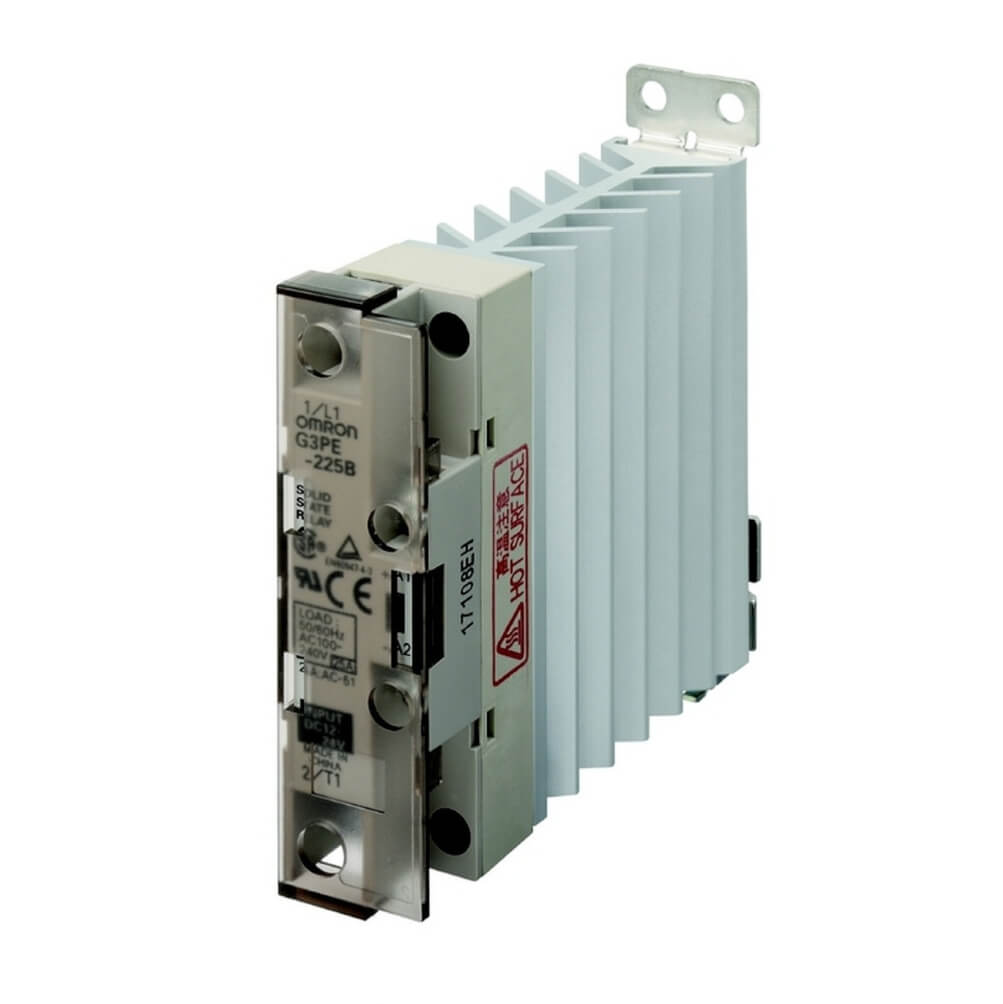

OMRON G3PE-225B 12-24VDC Solid State Relay for Heaters (1 phase; 12-24VDC)

Application: ON/OFF control

Number of phases: 1

Number of poles: 1

Mounting method: DIN rail/screw

Terminal: Screw

Complete with socket: X

LED indicator: ✓

Rated operational voltage, AC: 100-240 V

Operating voltage range, AC: 75-264 V

Rated operation current Ie at AC-1: 25 A

Permissible I²t value: 260 A²s

Applicable heater capacity (AC1: resistive load): 5 kW

Product Height (unpacked): 100 mm

Product Width (unpacked): 22.5 mm

Product Depth (unpacked): 100 mm

Supply voltage DC: 12-24 V

Control current max.: 10 mA

Must operate voltage max.: 9.6 V

Must release voltage min.: 1 V

Maximum operating temperature: 80 °C

Minimum operating temperature: -30 °C

Isolation: Phototriac

Switching at zero-crossing: ✓
