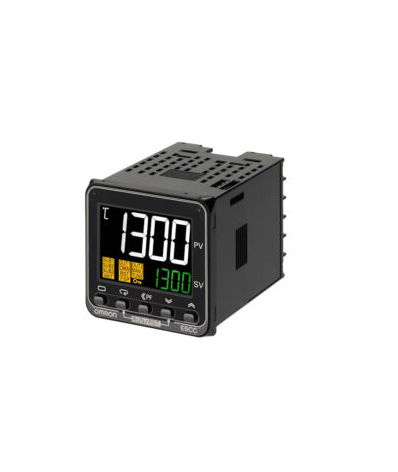

OMRON E5CC-QX2ASM-800 Digital Temperature Controller

Number of display digits: 4

Character height (measured value): 15.2 mm

Power supply: 100…240 VAC

Control modes: Cooling control, heating control

Control method: 2-PID control, ON-OFF control

Number of channels: 1

Temperature ranges

0…100ºC

0…120ºC

0…1300ºC

0…165ºC

0…1700ºC

0…1800ºC

0…2300ºC

0…260ºC

0…90ºC

-100…850ºC

-199.9…400ºC

-199.9…500ºC

-20…400ºC

-20…500ºC

-200…1300ºC

-200…400ºC

-200…850ºC

-200…600ºC

Number of sensor inputs: 1

Sensor input types

K, J, T, E, L, U, N, R, S, B, C, W, PL2, Pt100Ω, JPt100Ω, infrared temperature sensor, 0…20 mADC, 4…20 mADC, 0…10 VDC, 0…5 VDC, 1…5 VDC

Number of control outputs: 1

Control output type: Voltage output for driving SSR

Number of auxiliary outputs: 2

Auxiliary output type: Relay output

Communication: None

Mounting method: Flush mounting

Panel cutout dimensions: W45 × H45 mm

Connection type: Screw terminals

Ambient humidity (non-condensing): 25…85%, 90% max.

Approximate weight: 120 g

Overall width: 48 mm

Overall height: 48 mm

Overall depth: 64 mm

Protection rating: IP00, IP20, IP66
