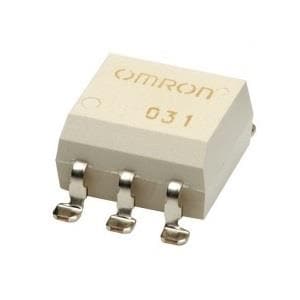

Omron Electronics G3VM-31ER Solid State Relays DA Signal Relay, MOSFET Relay, Higher power, 5.0-A switching with a 30-V load voltage, DIP6 package. Low 20 mO ON Resistance.

Width: 6.4 mm (0.252 in)

Height: 3.65 mm (0.144 in)

Length: 7.12 mm (0.28 in)

Output Type: MOSFET

Unit Weight: 2.408 g

Input Current: 30 mA

Mounting Style: PCB Mount

Termination Style: SMD/SMT

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 5 A

Load Voltage Rating: 30 VAC, 30 VDC

Control Voltage Range: 1.5 VDC to 1.8 VDC

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
