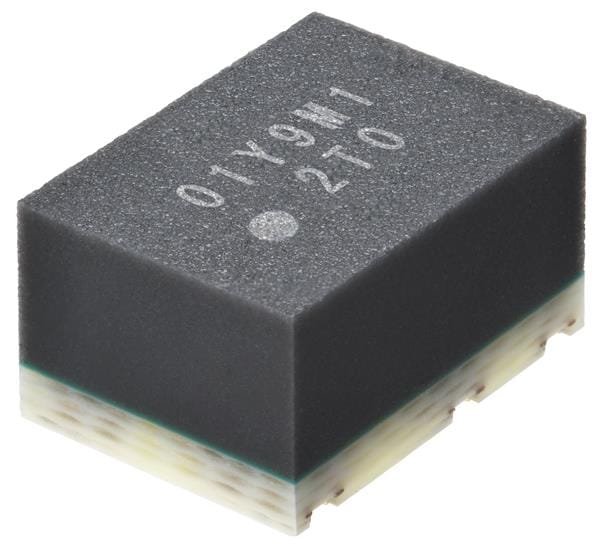

Omron Electronics G3VM-101MT(TR01) MOSFET Relay Modules MOS FET Module

Width: 3.75 mm (0.148 in)

Height: 2.7 mm (0.106 in)

Length: 5 mm (0.197 in)

Output Type: MOSFET

Input Current: 30 mA

Mounting Style: PCB Mount

Termination Style: Solder Pad

Moisture Sensitive: Yes

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 550 mA

Load Voltage Rating: 100 VAC, 100 VDC

On Resistance - Max: 1.5 Ohms

Control Voltage Range: 2.2 VDC to 2.8 VDC

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
